Casagrand Keystone

Structural System: RCC Framed structure designed for seismic compliant (zone 3)
Masonry (if conventional): 200mm for external walls & 100mm for internal walls
Floor-Floor height (incl. slab): Will be maintained at 2950mm
ATT: Anti–termite treatment will be done

Internal walls : Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion
Ceiling: Finished with 2 coats of putty, 1 coat of primer & 2 coats of tractor emulsion
Exterior walls : Finished with texture, 1 coat of primer & 2 coats of exterior emulsion paint (Color as per architect design intent)
Bathroom : Vitrified tiles of size 600x1200mm till 2350mm height & above will be finished with a coat of primer
Bathroom ceiling : Grid type false ceiling

Foyer, Living, Dining & Passage: Vitrified tiles of size 1200x600mm
Bedroom & Kitchen: Vitrified tiles of size 600x600mm
Bathroom: Anti-skid ceramic tiles of size 600x600mm

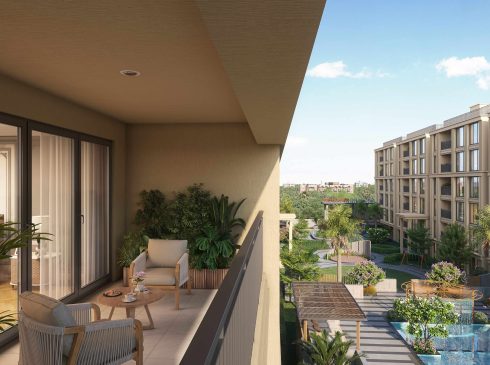

Balcony: Wooden finish tiles of size 600x1200mm
Door Threshold: Tile threshold will be provided for all doors

Kitchen: Will be left open for modular kitchen
Electricals: For Chimney, Water purifier & Washing machine
Dining: Granite countertop wash basin with 300mm height Granite back splash

Handrail: MS handrail as per architect’s design
Cloth drying hanger: Ceiling cloth drying hanger in living balcony

CP & Sanitary fixture: Jaquar or equivalent
Master Bathroom: Wall mounted WC with cistern, health faucet, single lever diverter, overhead shower, hand shower, spout, granite counter top wash basin and 2’ long trench drain
Other Bathroom: Wall mounted WC with cistern, health faucet, single lever diverter overhead shower, spout, granite counter top wash basin and 2’ long trench drain

Main door: Full jambs polished frame and architrave with good quality double-side veneer finish
shutter of size 1200 x 2200mm
: Ironmongeries like Digital door lock of Yale or equivalent, 18” tower bolts,
door viewer and concealed door closure
Bedroom doors: Good Quality door frame with double sided laminate finish door of size 1000 × 2200 mm
: Ironmongeries like Yale or equivalent lock, magnetic door catcher, tower bolt, etc.,
Bathroom doors: Good Quality door frame with double sided laminate finish door of size 800 × 2200 mm
: Ironmongeries like thumb turn lock of Yale/equivalent without key, door bush, etc.,

Windows: Aluminum windows with sliding shutter with see through clear glass & MS railing on
the inner side (wherever applicable)
: Soffit finished with granite
French door: Aluminum sliding shutters with clear glass
: Soffit finished with granite
Ventilators: Aluminum framed fixed louvers / openable shutter for ODU access (wherever applicable)
: Soffit finished with tile

Power supply: 3 PHASE power supply connection
Safety device: MCB & RCCB (Residual current circuit breaker)
Switches & sockets: Schneider or Equivalent
Wires: Fire Retardant Low Smoke (FRLS) copper wire of good quality IS brand
TV: Point in Living & Master Bedroom
Data: Point in Living & Master Bedroom
Split-Air Conditioner: Points in Living /Dining & all Bedrooms
Exhaust fan: Point in all Bathrooms
Geyser: Point will be given in all bathrooms and solar point in master bathroom
Power Back-up: DG Power backup 1BHK-350W, 2BHK-400W, 3BHK-500W

Lift: 10 passenger automatic lift will be provided with MS Powder coat Finish
Unit Signage Board: Respective unit numbers sign board will be provided in Lift lobby
Lift facia: Designer Vitrified tile finish with Granite jambs
Lift lobby: Designer Vitrified tile finish with pattern
Corridor: Vitrified tile finish of size 600x600mm
Staircase floor: Granite flooring at all floors
Staircase handrail: MS handrail with enamel paint finish in all floors
Terrace floor: Pressed tile flooring
Terrace doors: Good quality door frame with waterproof shutters
: Ironmongeries like thumb turn lock, tower bolt, door closure, etc., of Yale/equivalent brand

Water Storage: Centralized UG sump with WTP (Min. requirement as per water test report)
Rain water harvesting: Rain water harvesting system (as per site requirement)
STP: Centralized Sewage Treatment plant (as per site requirement)

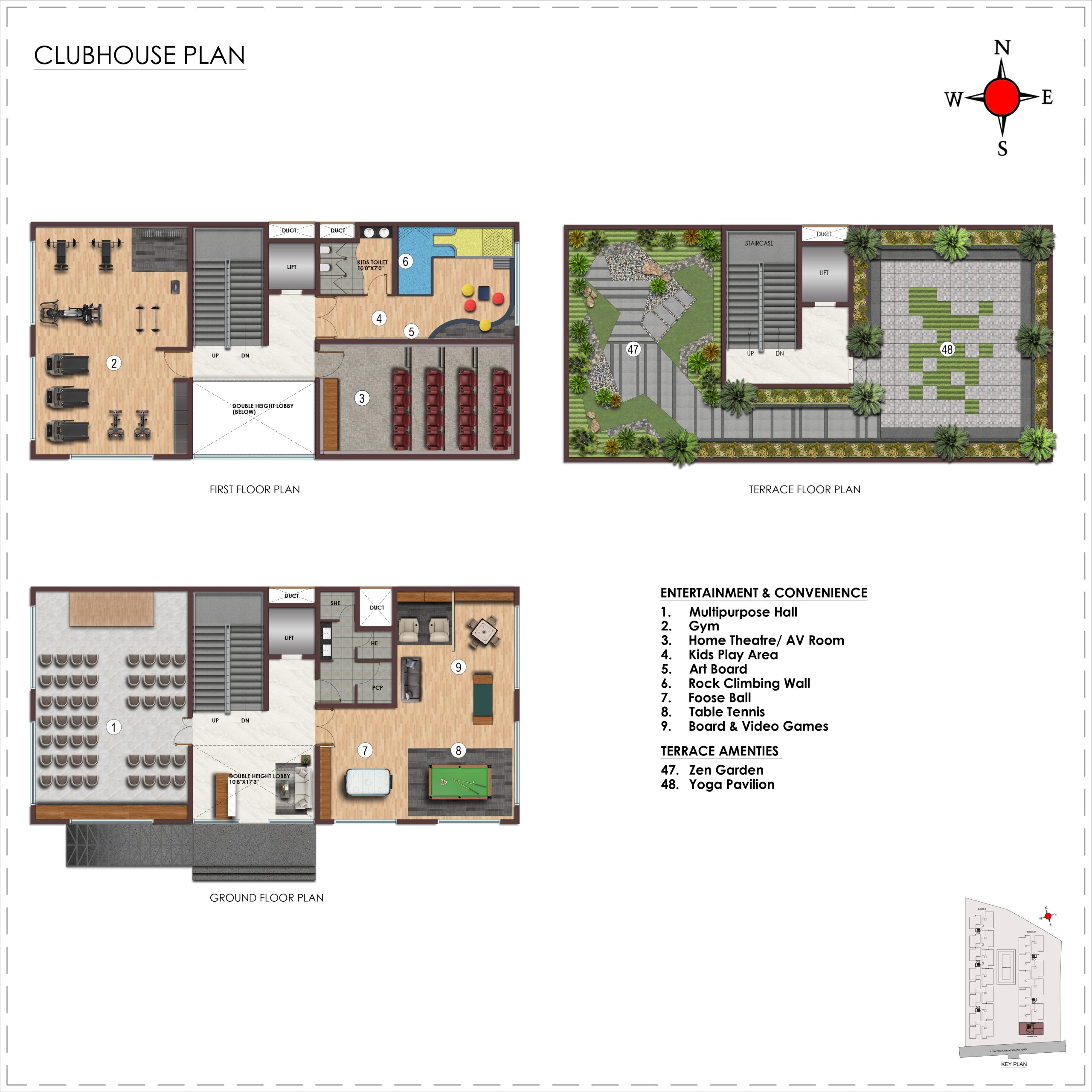

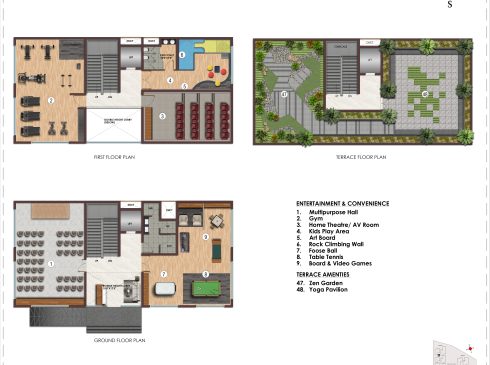

Common Back-up: 100% Power backup for common amenities such as clubhouse, WTP, STP & common area lightings
Safety: CCTV surveillance cameras will be provided all-round the building at pivotal locations in ground level
Security: Security booth will be provided at the project entry/exit facilitated with My Gate app
Compound wall: Site perimeter fenced by compound wall with entry gates for height of 2100mm as per
design intent and over that barbed fence wherever applicable

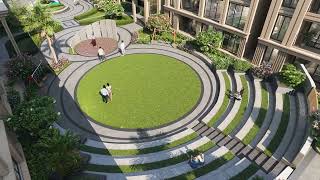

Landscape: Suitable landscape at appropriate places in the project as per design intent
Driveway: Convex mirror for safe turning at driveway in / out

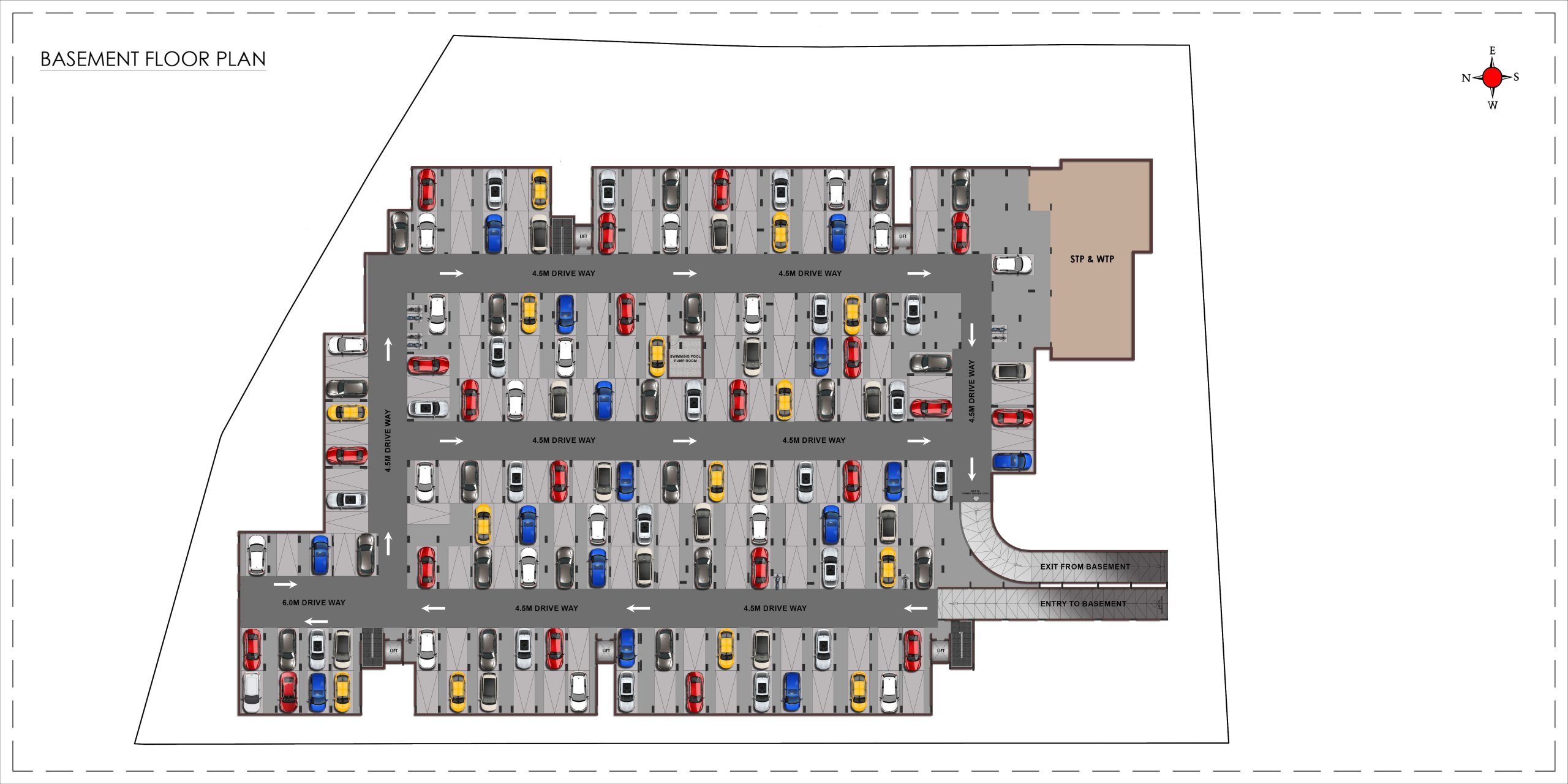

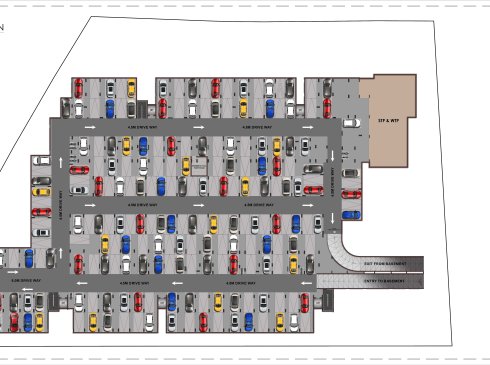

Basement floor finishing: Grano Flooring
External Driveway: Interlocking paver block/equivalent flooring with demarcated driveway as per
landscape’s design intent. Granite/Cobble stone flooring in entrance driveway and block lobby entrances
