Casagrand Edensa

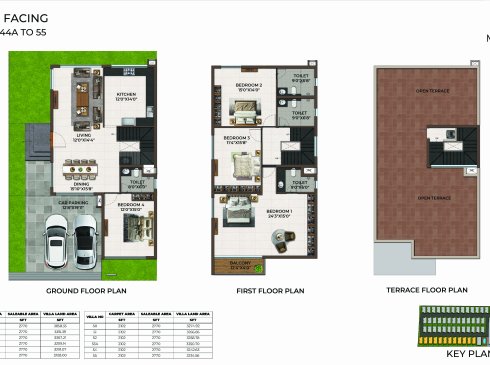

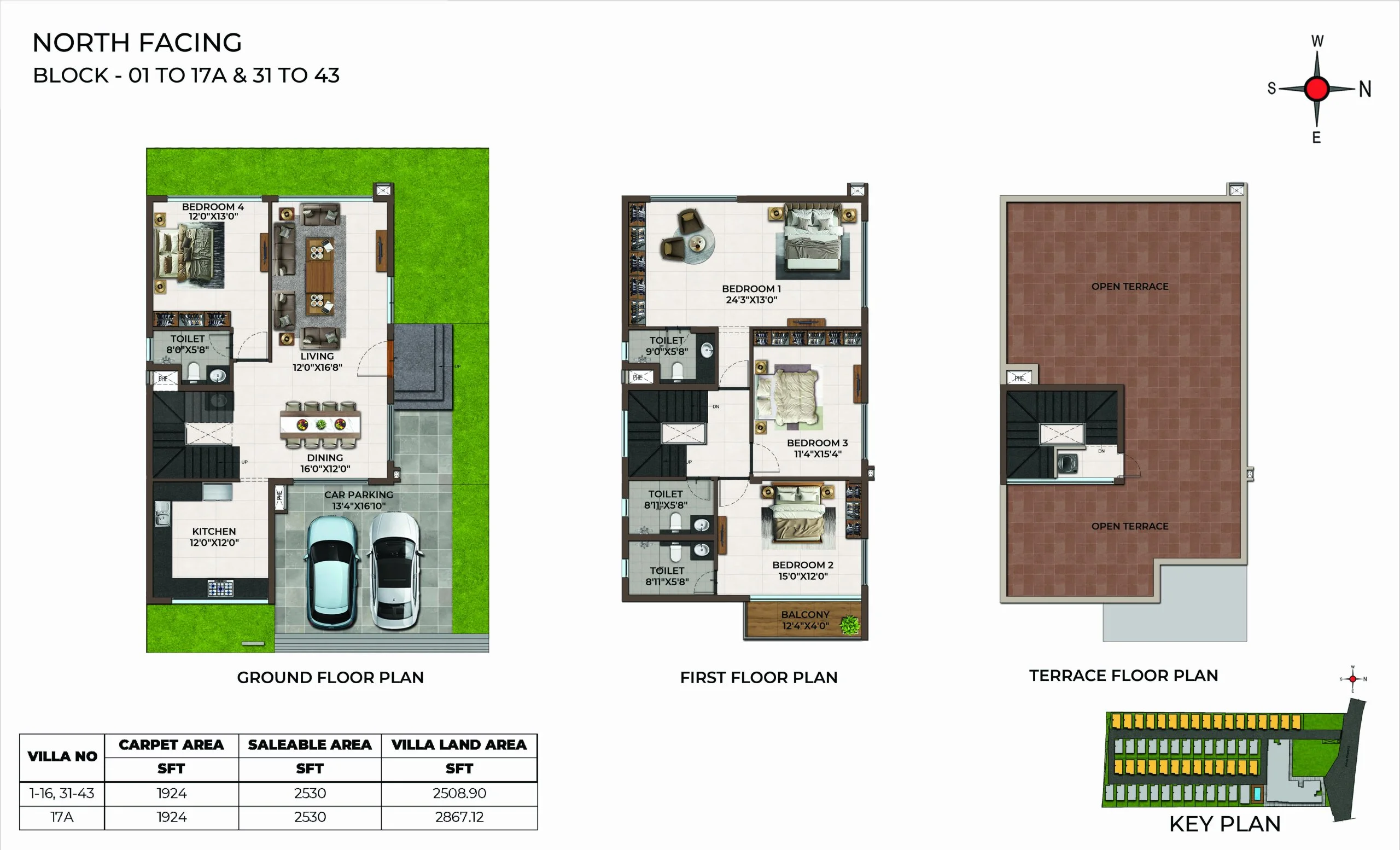

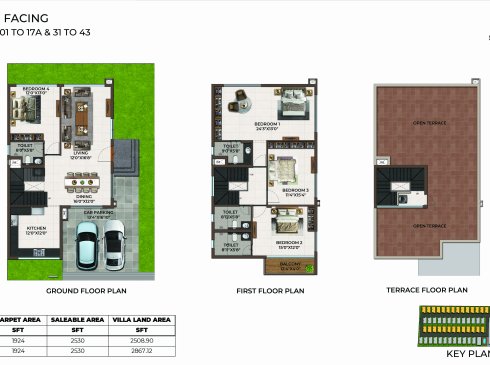

Villa Specification:

• Structural System: RCC Framed structure designed for seismic compliant (Zone 3)
• Masonry: 200mm for external walls & 100mm for internal walls
• Floor-Floor height (incl. slab): Will be maintained at 3250 mm
• ATT: Anti-termite treatment will be done

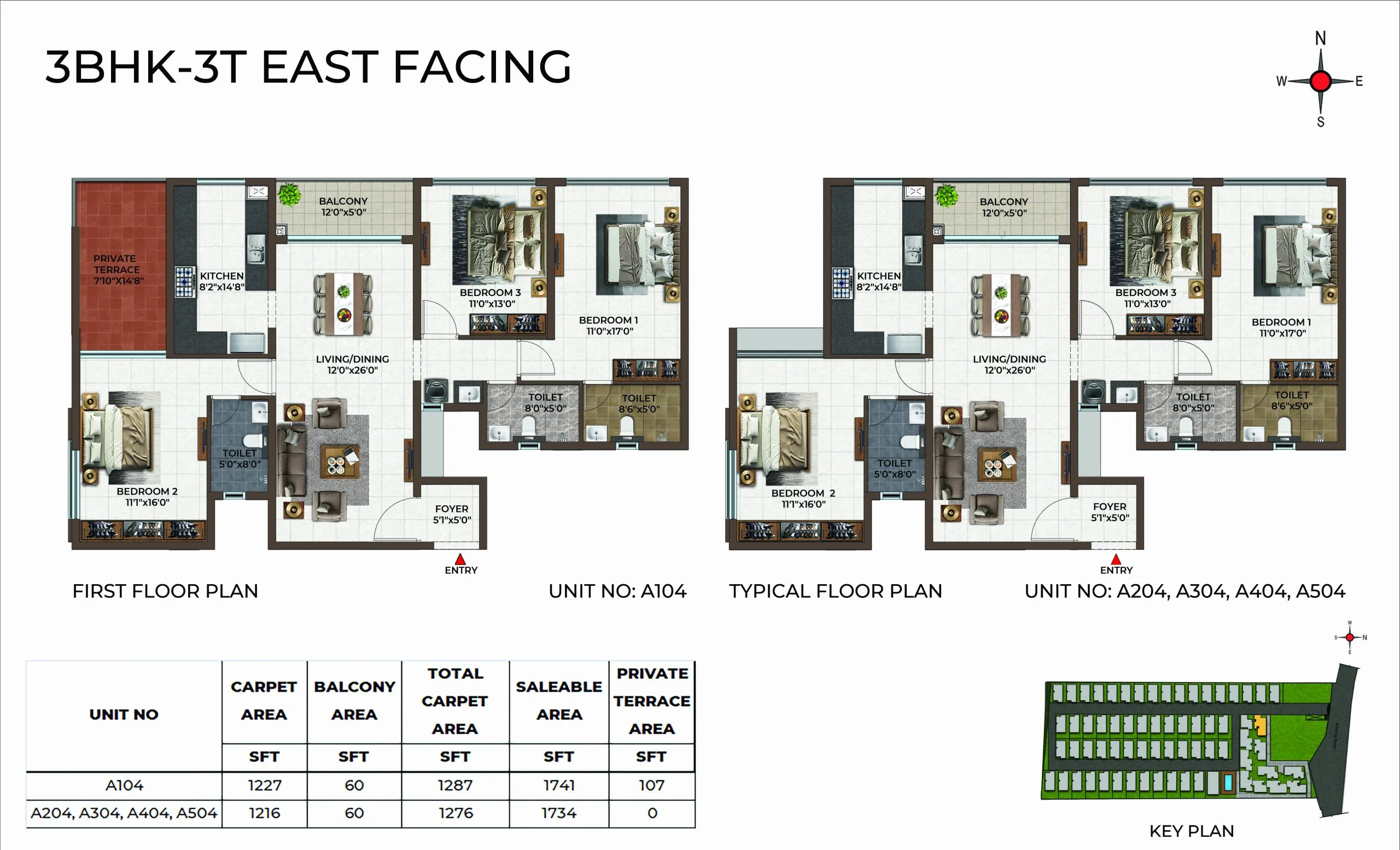

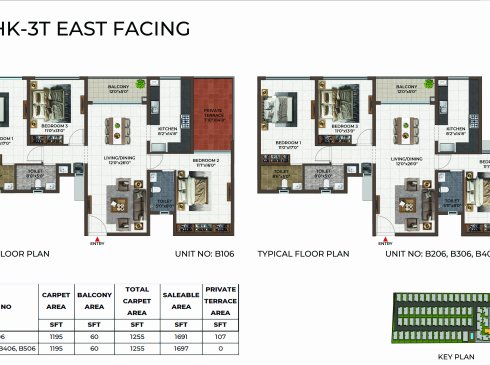

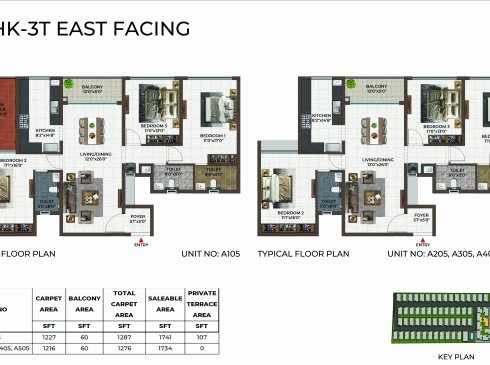

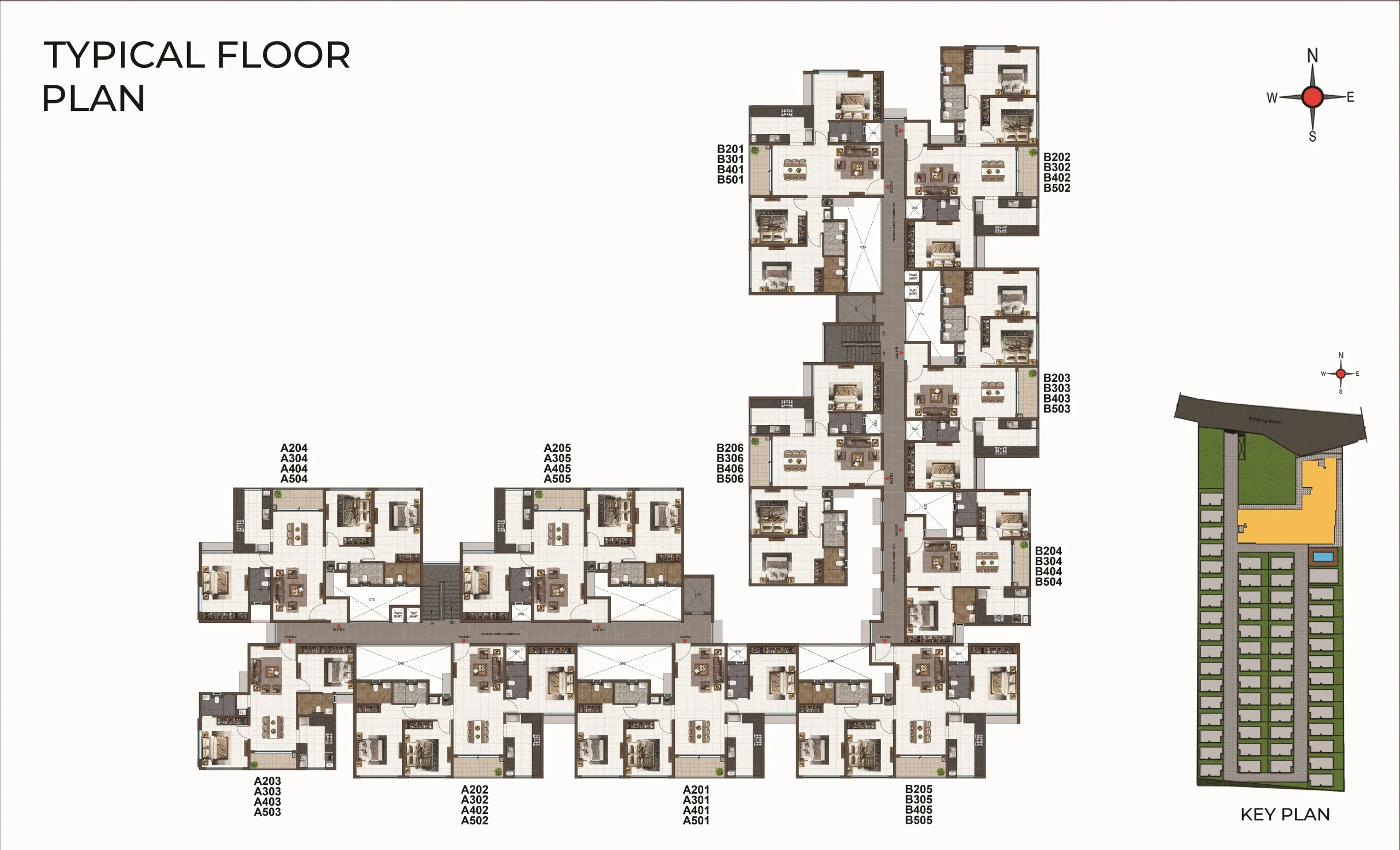

Apartments Specification

• Structural System: RCC framed structure designed for seismic compliant (Zone 3)
• Masonry: 200mm for external walls & 100 mm for internal walls
• Floor-Floor height (incl. slab): Will be maintained at 3000 mm
• ATT: Anti-termite treatment will be done

Villa Specification:

• Internal walls: Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion
• Ceiling: Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion
• Exterior walls: Finished with 1 coat of primer & 2 coats of exterior emulsion paint (Color as per architect design intent)
• Bathroom: Ceramic tile of size 300 x 600mm for height of 2400mm & above tile will be finished with 1 coat of primer & 2 coats of premium emulsion

Apartments Specification

• Internal walls: Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion
• Ceiling: Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion
• Exterior walls: Finished with 1 coat of primer & 2 coats of exterior emulsion paint (Color as per architect design intent)
• Bathroom: Glazed / Matte ceramic tile of size 300×450 mm for a height of 2350 mm & above tile will be finished with 1 coat of primer & 2 coats of premium emulsion
• Toilet ceiling: Grid type false ceiling

Villa Specification:

• Main Flooring (Living, Dining, Passage, Bedroom & kitchen): Vitrified tiles of size 600×1200 mm
• Bathroom: Anti-skid ceramic tiles of size 300×300 mm
• Balcony / Open Deck: Vitrified tiles of size 600×1200 mm
• Door threshold: Vitrified tiles for all internal doors
• Terrace: Pressed tiles finish
• Car parking: Kota stone

Apartments Specification

• Main Flooring (Living, dining, Kitchen, Bedroom & passage): Vitrified tiles of size 600×600 mm
• Bathroom: Anti-skid ceramic tiles of size 300×300 mm
• Balcony: Anti-skid ceramic tiles of size 300×300 mm
• Private open terrace (if applicable): Anti-skid ceramic tiles of size 300×300 mm

Villa Specification:

• Kitchen: To be left open for modular kitchen
• Electrical points: For Hob, Chimney, Water Purifier, Washing Machine and fan point
• Plumbing point: Inlet & Outlet provision for Water Purifier, Washing Machine, Sink & Sink faucet
• Dining: Granite countertops wash basin with 300mm height tile back splash

Apartments Specification

• Electrical point: For Hob, Chimney, Water Purifier & Washing Machine
• Plumbing point: Inlet & Outlet provision for Water Purifier, Washing Machine, Sink & Sink faucet
• Dining: Granite counter mounted washbasin and wall dado of height 200 mm

Villa Specification:

• Handrail: MS handrail as per architect’s design intent

Apartments Specification

• Handrail: MS handrail finished with PU primer with enamel paint as per architect’s design intent

• Flooring: Granite flooring for staircase
• Handrail: MS handrail as per architect’s design

Villa Specification:

• CP & Sanitary fixture: Jaquar / Equivalent will be provided
• Master bathroom:
  Wall mounted WC with concealed cistern, health faucet, single lever diverter with overhead shower, hand shower, spout, 2 feet long trench drain and granite counter with countertop wash basin.
• Other Bathrooms:
  Wall mounted WC with concealed cistern, health faucet, single lever diverter with overhead shower, spout, 2 feet long trench drain & granite counter with countertop wash basin.
• Solar water heater:
  Solar water heater line provided at shower area for all toilets with suitable capacity of water heater and no provision for geyser inside the bathrooms.

Apartments Specification

• CP & Sanitary fixture: American Standard / equivalent will be provided
• Master Bathroom:
  Wall mounted WC with concealed cistern, health faucet, single lever diverter with overhead shower & granite counter with counter mounted washbasin
• Other Bathrooms:
  Wall mounted WC with concealed cistern, health faucet, single lever diverter with overhead shower & wall hung wash basin

Villa Specification:

DOORS

• Main door:
  Good quality door frame with double side veneer shutter of size 1200 x 2400 mm and wooden threshold with polish finish
• Bedroom doors:
  Good quality door frame with laminate shutter of size 1000 x 2400 mm with paint finish
  Ironmongeries like lock, magnetic door catcher, 8” tower bolts etc., of Yale / equivalent brand
• Bathroom doors:
  Good quality door frame with double sided laminated designer door shutters of size 800 x 2400 mm with good quality door frame
  Ironmongeries like one side coin & thumb turn lock without key, 6” tower bolts, door bush etc., of Yale / equivalent brand
• Terrace doors:
  Good quality door frame with FRP shutter size of 800 x 2100 mm
  Ironmongeries like inside thumb turn lock with key, tower bolt, door bush etc., of Yale / equivalent brand

WINDOWS

• Windows:
  Aluminum black powder coated framed sliding shutter with see-through plain glass & MS grill / railing (wherever applicable). Sill level finished with granite
• French doors:
  Aluminum black powder coated framed sliding shutters with toughened glass
• Ventilators:
  Aluminum framed adjustable louver & MS grill. Openable shutter for ODU access (wherever applicable), soffit finished with granite.

Apartments Specification

DOORS

• Main door:
  Good quality door frame with double side veneer shutter of size 1200 x 2200 mm with polish finish
  Ironmongeries like lock, 8” tower bolts, door viewer, magnetic door catcher etc., of Godrej / equivalent brand
• Bedroom doors:
  Good quality door frame with skin moulded shutter of size 1000 x 2200 mm with paint finish
  Ironmongeries like lock, 8” tower bolts, door catcher etc., of Godrej / equivalent brand
• Bathroom doors:
  Good quality door frame with FRP shutters of size 800 x 2200 mm with paint finish
  Ironmongeries like one side coin & thumb turn lock without key, 6” tower bolts, door bush etc., of Godrej / equivalent brand

WINDOWS

• Windows:
  Aluminum black powder coated framed sliding shutter with see-through plain glass & MS grill/railing (wherever applicable) finished with Zinc Chromite primer and enamel paint
• French doors:
  Aluminum black powder coated sliding shutters with toughened glass
• Ventilators:
  Aluminum black powder coated with adjustable louver / openable shutter for ODU access (wherever applicable)

Villa Specification:

• Power Supply: 3 PHASE power supply connection
• Safety device: MCB & RCCB (Residual current circuit breaker)
• Switches & sockets: Schneider / Equivalent
• Wires: Fire Retardant Low Smoke (FRLS) copper wire of good-quality IS brand
• DTH/TV: Point in Living and Master bedroom, provision in other bedrooms and lounge
• DATA/Intercom provision: Provision in Living and Master bedroom
• Split-air conditioner: Points in living / dining, & all Bedrooms
• Exhaust fan: Point in all bathrooms
• Power Back-up: Inverter provision for fan and light points (Wiring & Conduit provision only)
• Foot Lamp: Point in all bedrooms
• Weatherproof socket (5amp): Point provided in balcony
• Mirror point: Provided in all bathrooms

Apartments Specification

• Power Supply: 3 PHASE power supply connection
• Safety device: MCB & RCCB (Residual current circuit breaker)
• Switches & sockets: Legrand / MK (or) equivalent Modular box & modular switches & sockets of good quality IS brand
• Wires: Fire Retardant Low Smoke (FRLS) copper wire of good quality IS brand
• DTH/TV: Point in Living & Master bedroom
• DATA/Intercom provision: Provision in Living
• Split- air conditioner: Points in living / dining, & all Bedrooms
• Exhaust fan: Point in all bathrooms
• Geyser: Point will be given in all bathrooms
• Power Back-up: Inverter provision for fan and light points (Wiring & Conduit provision only)

Lift
: Automatic lift will be provided with Powder coat Finish

Back – up
: 100% Power backup for common amenities such as Clubhouse, lifts, WTP, STP & common area lighting

Unit Signage board
: Respective Unit numbers sign board will be provided in Lift lobby

Lift fascia
: Granite cladding at all the floor for threshold of 300mm

Lobby
: Granite flooring at ground floor & tile flooring at other floors

Corridor
: Anti-skid tile flooring at all floors

Staircase floor
: Granite flooring at all floors

Staircase handrail
: MS handrail with enamel paint finish in all floors

Terrace floor
: Pressed tile flooring

Terrace doors
: Good quality door frame with FRP shutter

: Ironmongeries like thumb turn lock, door closure, etc., of Godrej / equivalent brand

Rain water harvesting
: Rain water harvesting system (as per site requirement)

STP
: Centralized Sewage Treatment plant (as per site requirement)

Common Back-up
: 100% Power backup for common amenities such as Clubhouse, WTP, STP & common area lightings

Safety
: CCTV surveillance cameras will be provided all-round the building at pivotal locations in ground level

Security
: Security booth will be provided at the entry / exit, My Gate app

Compound wall
: Site perimeter fenced by compound wall with entry gates for height of 2100 mm as per design intent over that barbed fence wherever applicable

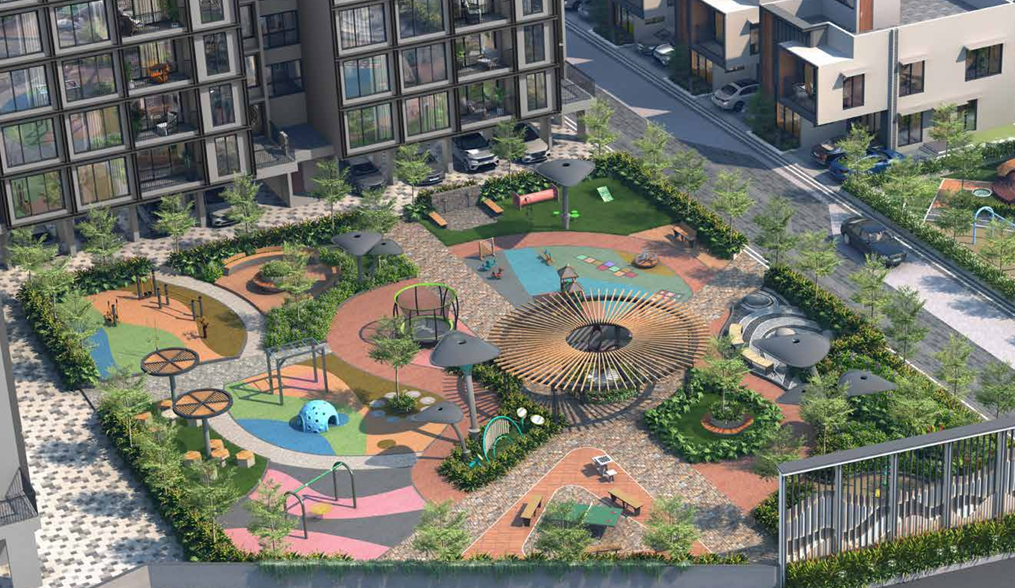

Landscape
: Suitable landscape at appropriate places in the project as per design intent

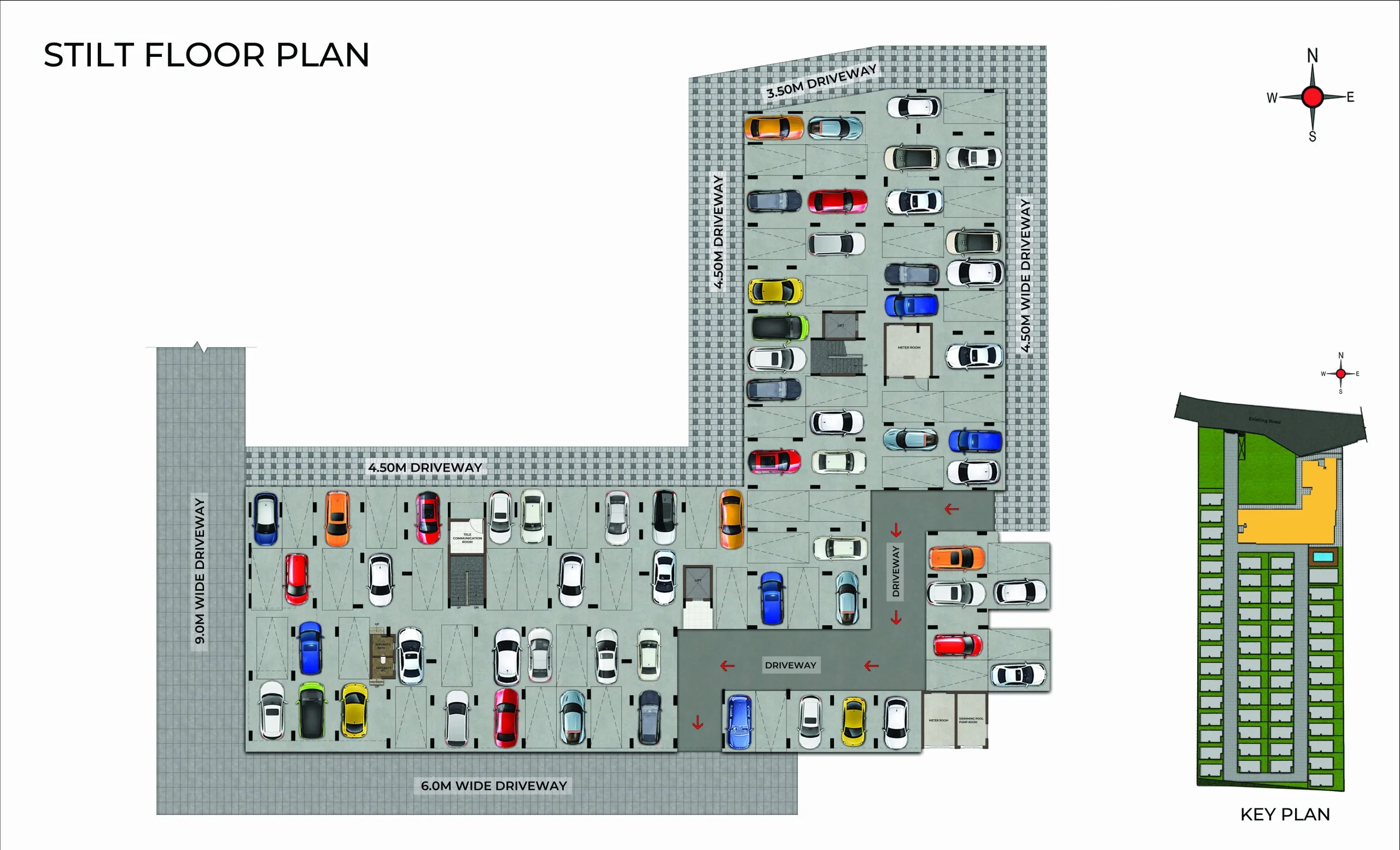

Internal Driveways
: Interlocking paver block / equivalent flooring with demarcated driveway with elegant lighting as per landscape design intent

External Driveway
: Convex mirror for safe turning in driveway in / out
: Granite / cobble stone flooring in entrance driveway and block lobby entrances

Water storage
: Centralized UG sump with WTP (Min. requirement as per water test report)
