Casagrand Orchards Villa – PH II

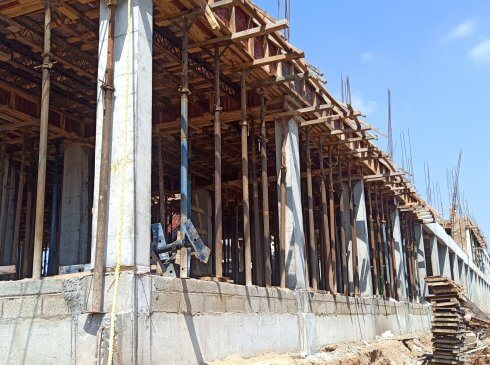

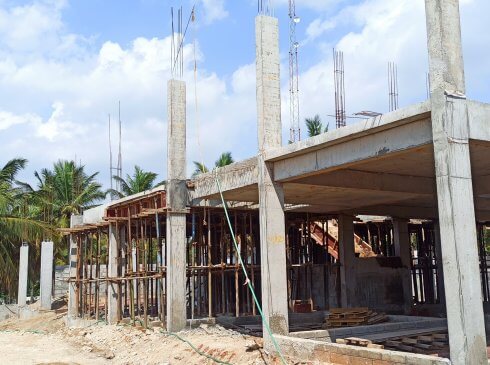

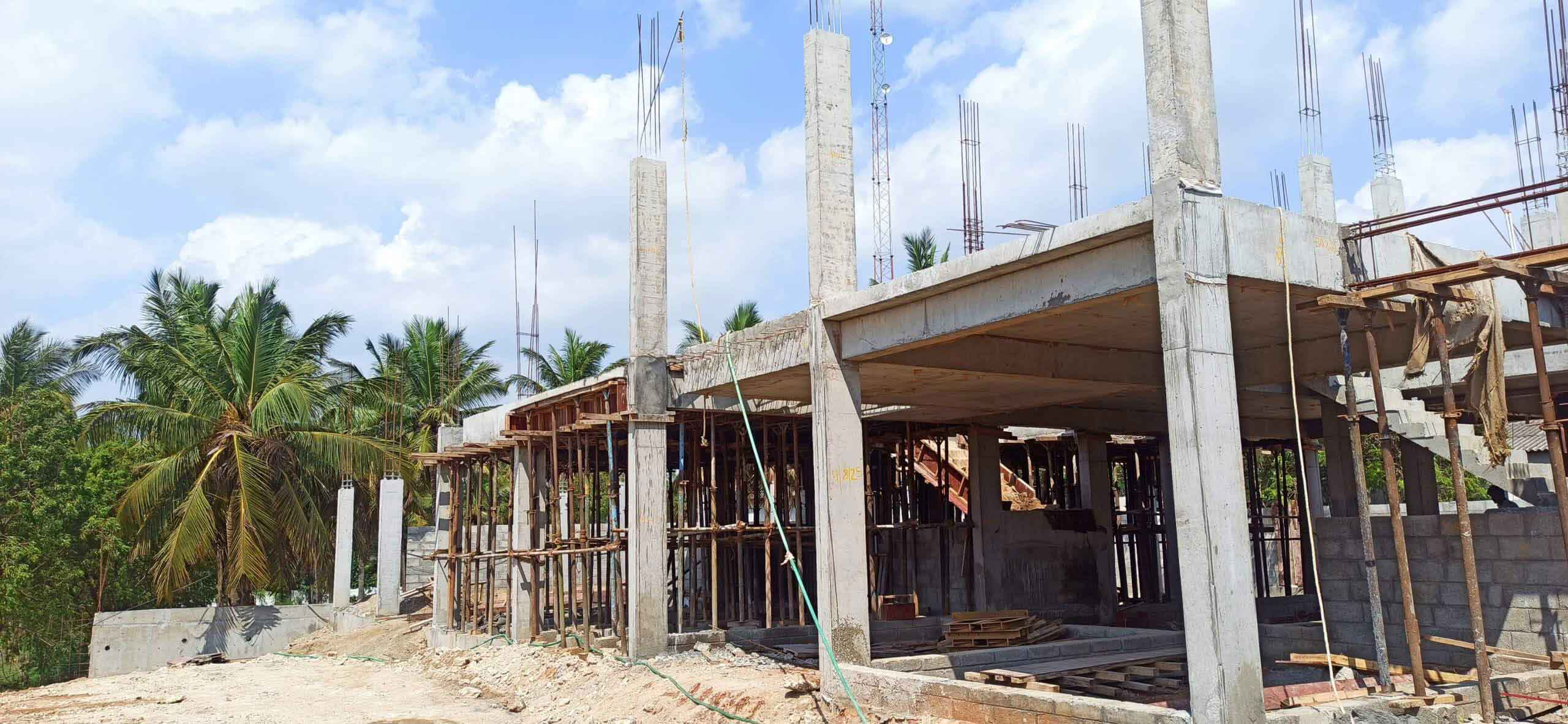

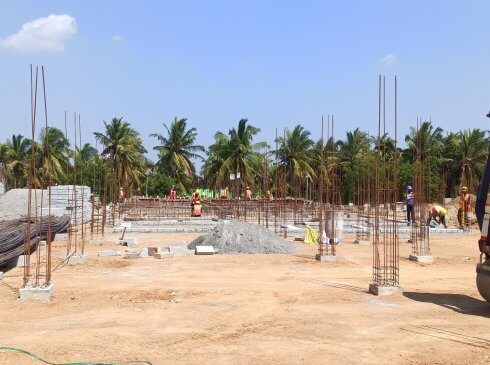

STRUCTURAL SYSTEM RCC Framed structure designed for
seismic compliant (Zone 3)
MASONRY 200mm for external walls & 100mm for
internal walls
FLOOR- FLOOR HEIGHT (INCL. SLAB)
Will be maintained at 3050mm ATT Anti–termite treatment will be done

INTERNAL WALLS Finished with 2 coats of putty, 1 coat of
primer & 2 coats of premium emulsion
CEILING Finished with 2 coats of putty, 1 coat of
primer & 2 coats of tractor emulsion
EXTERIOR WALLS Finished with Bubble texture, 1 coat of
primer & 2 coats of exterior emulsion
paint (Color as per architect design
intent)
BATHROOMS Designer tile of size 600x1200mm for a
height of 2100mm & above tile will be
finished with 1 coat of primer & 2 coats
of premium emulsion

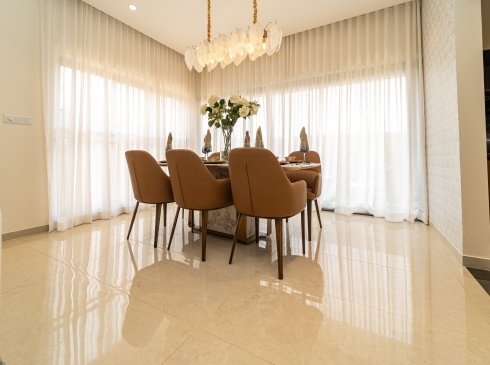

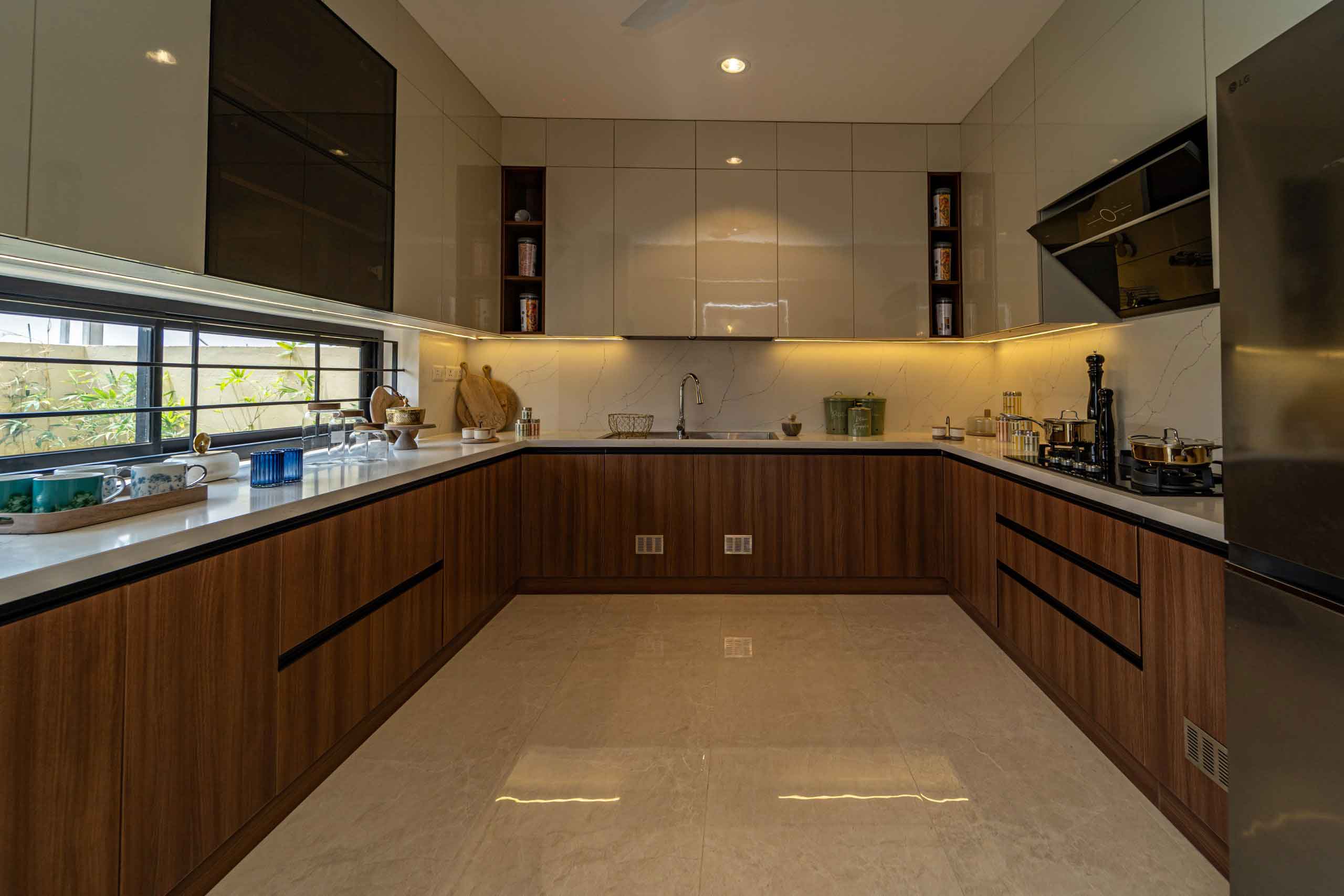

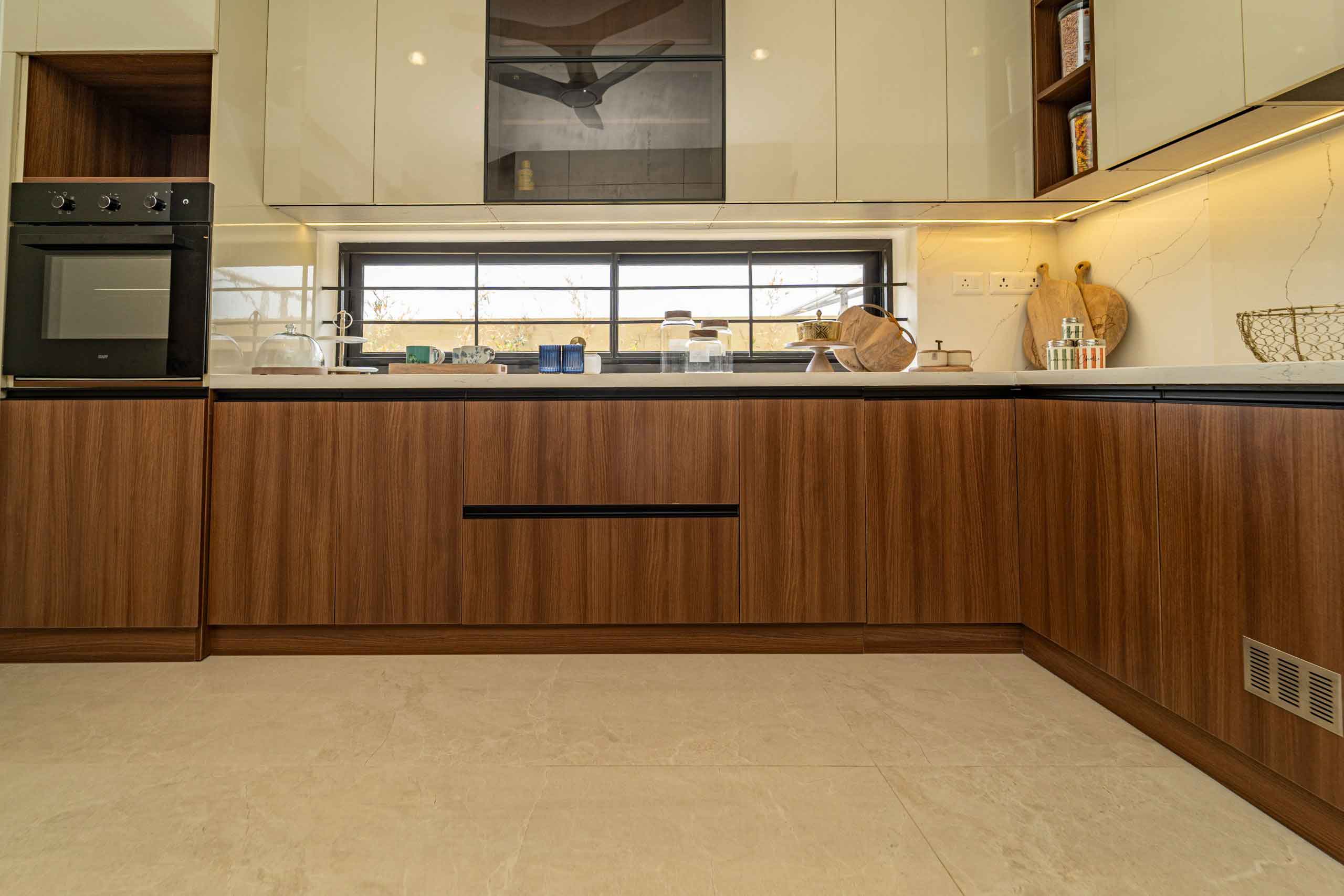

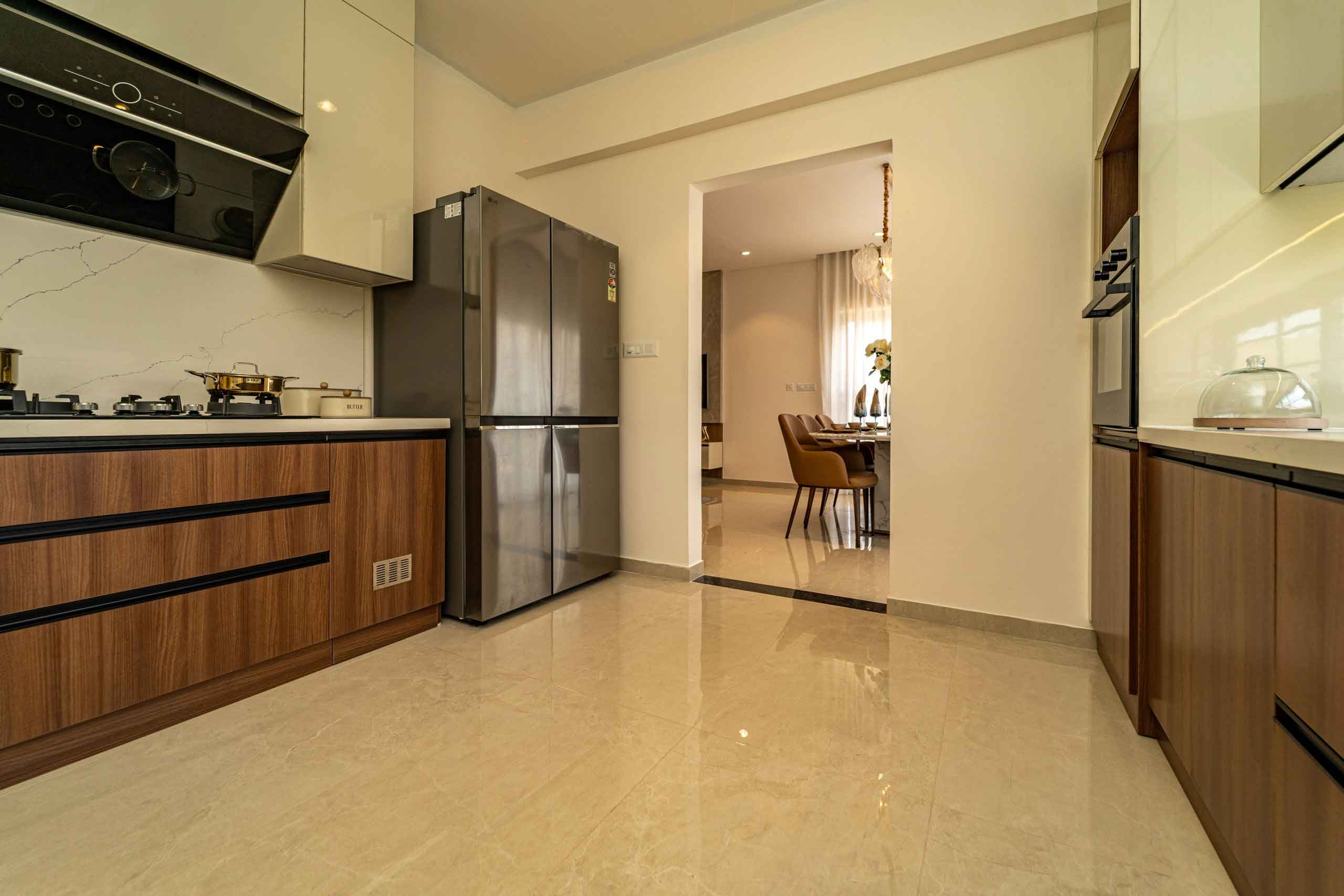

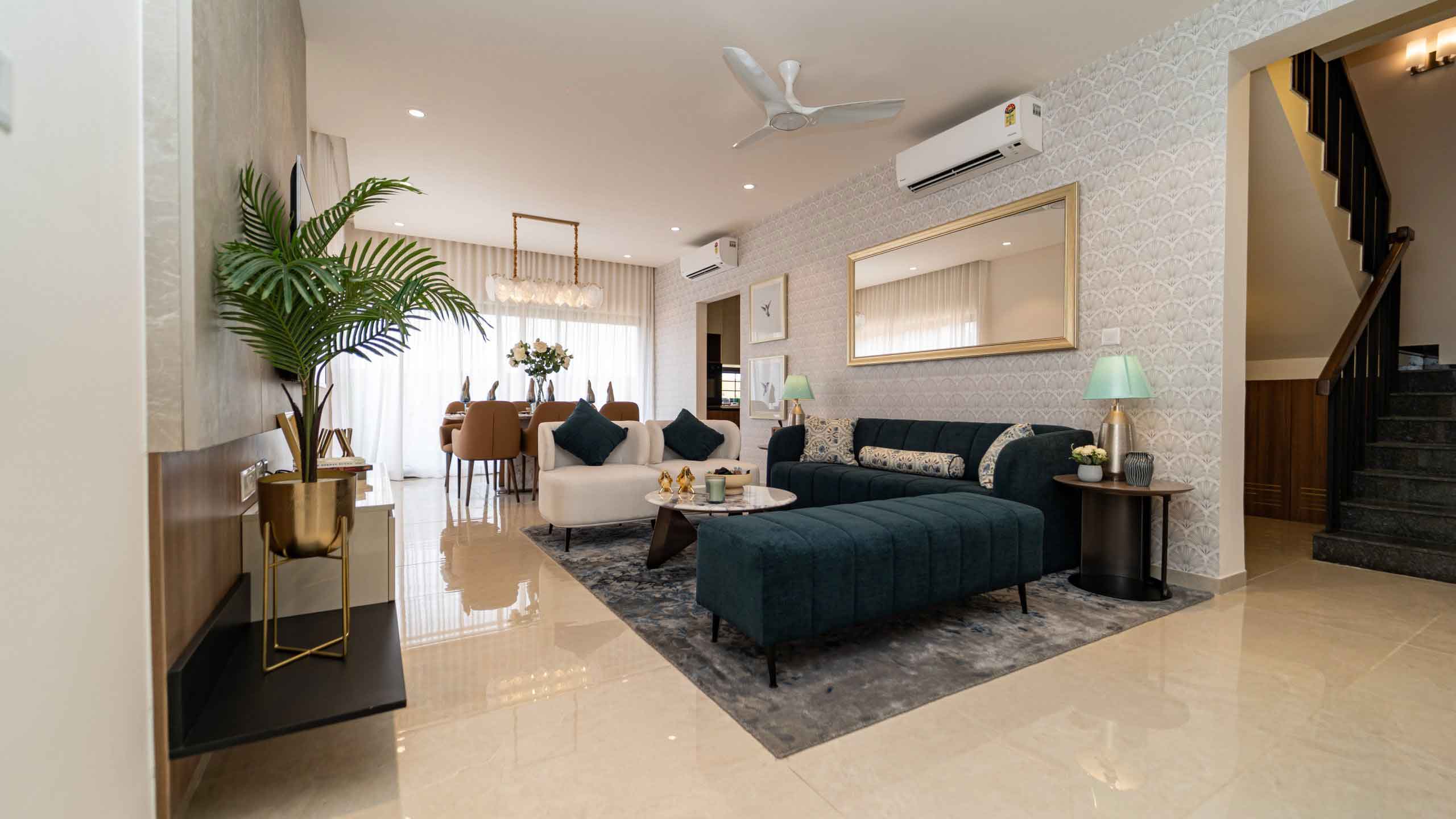

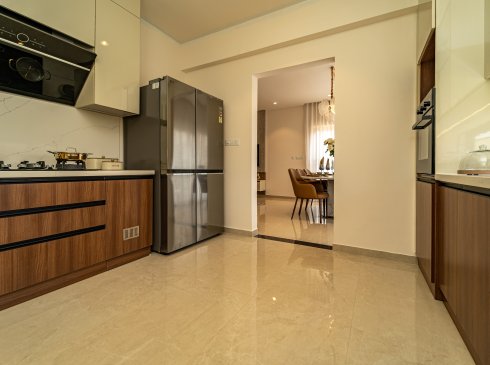

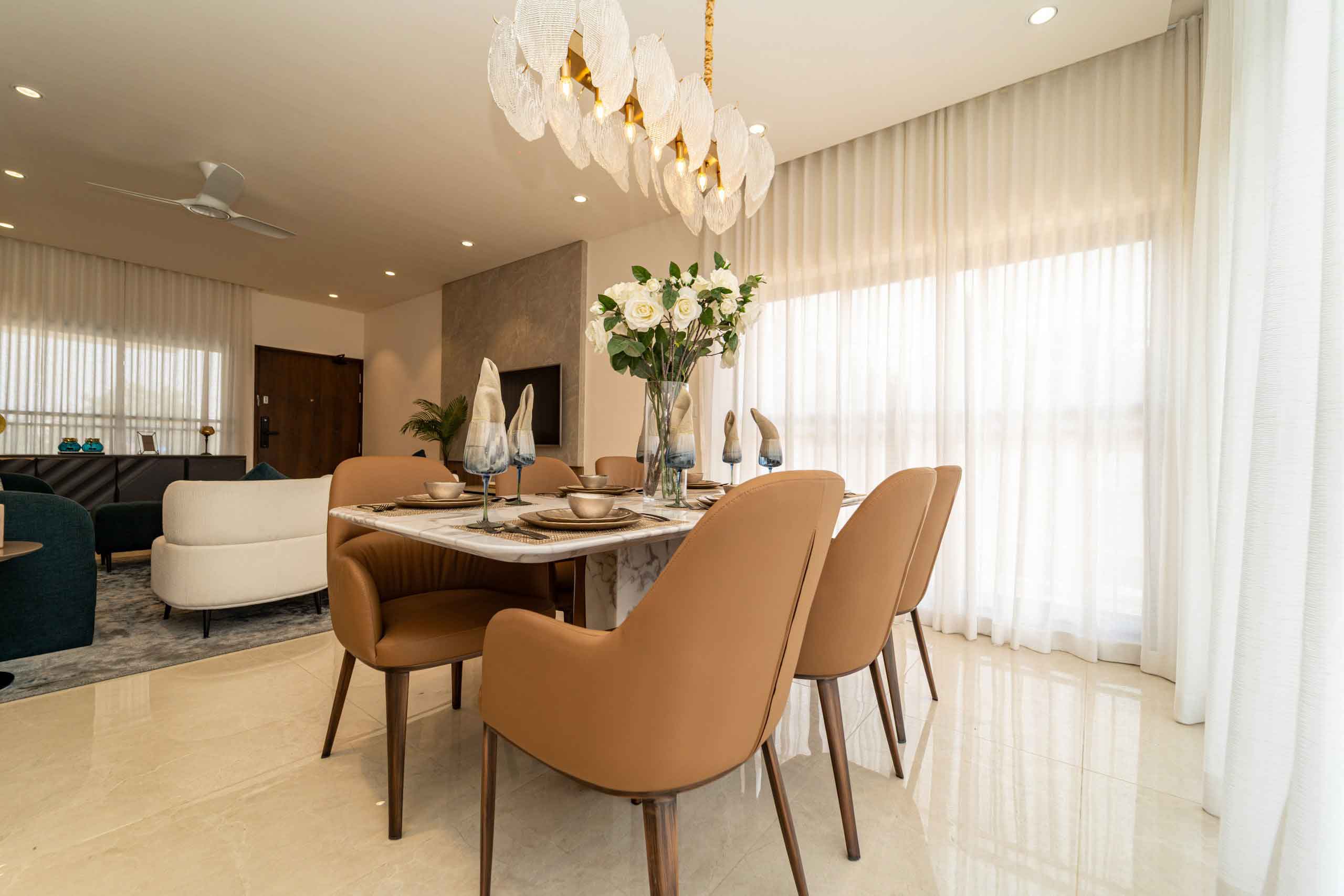

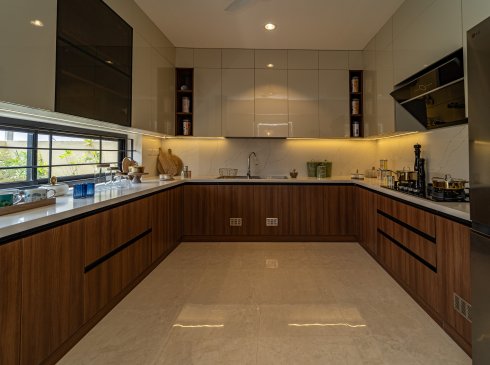

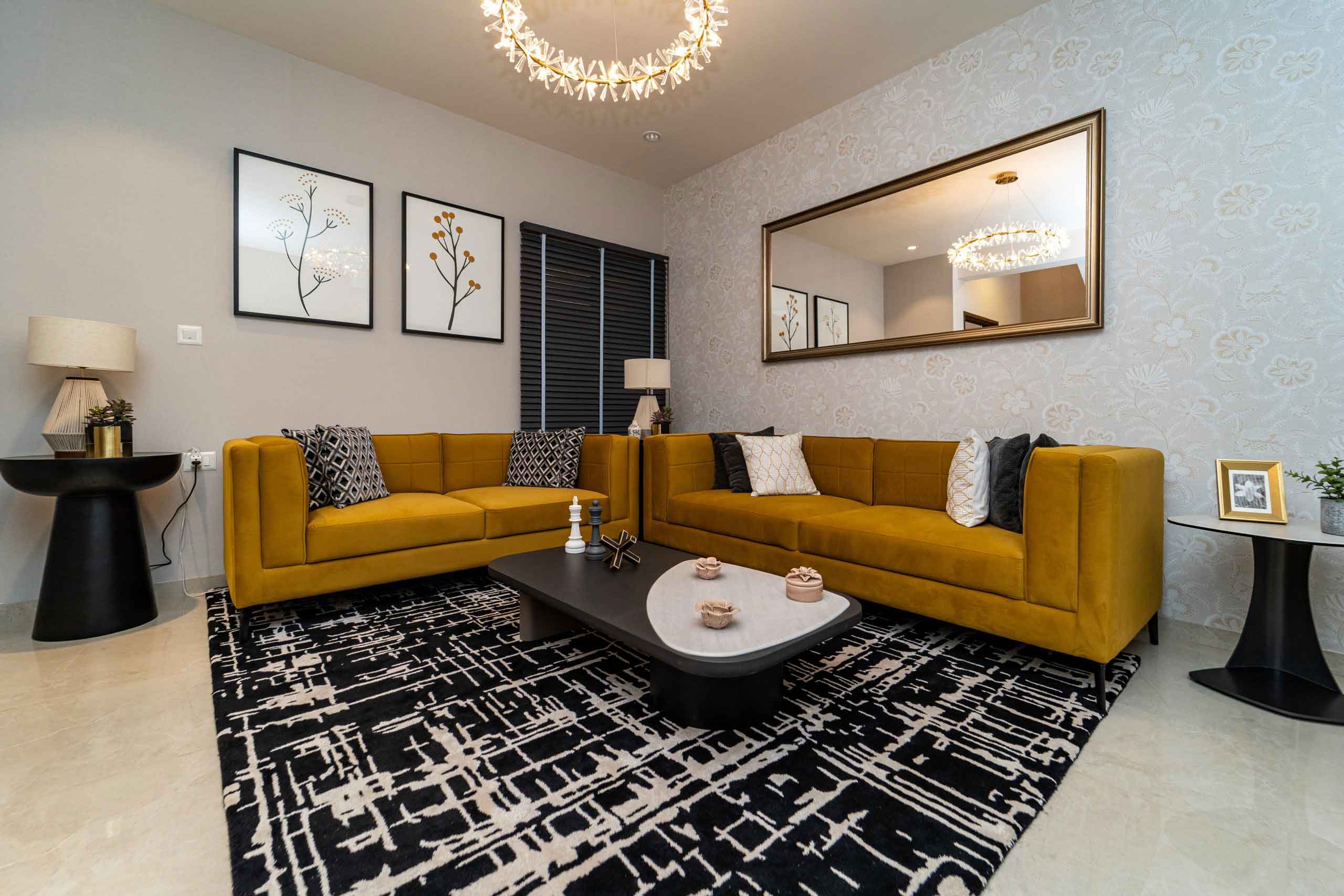

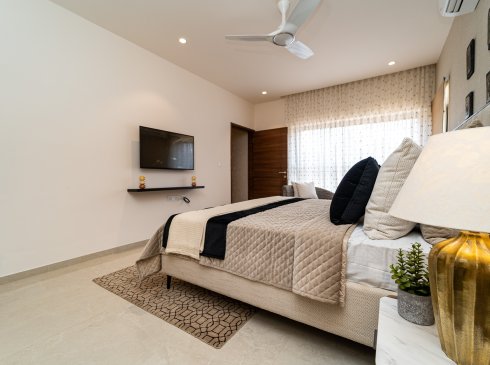

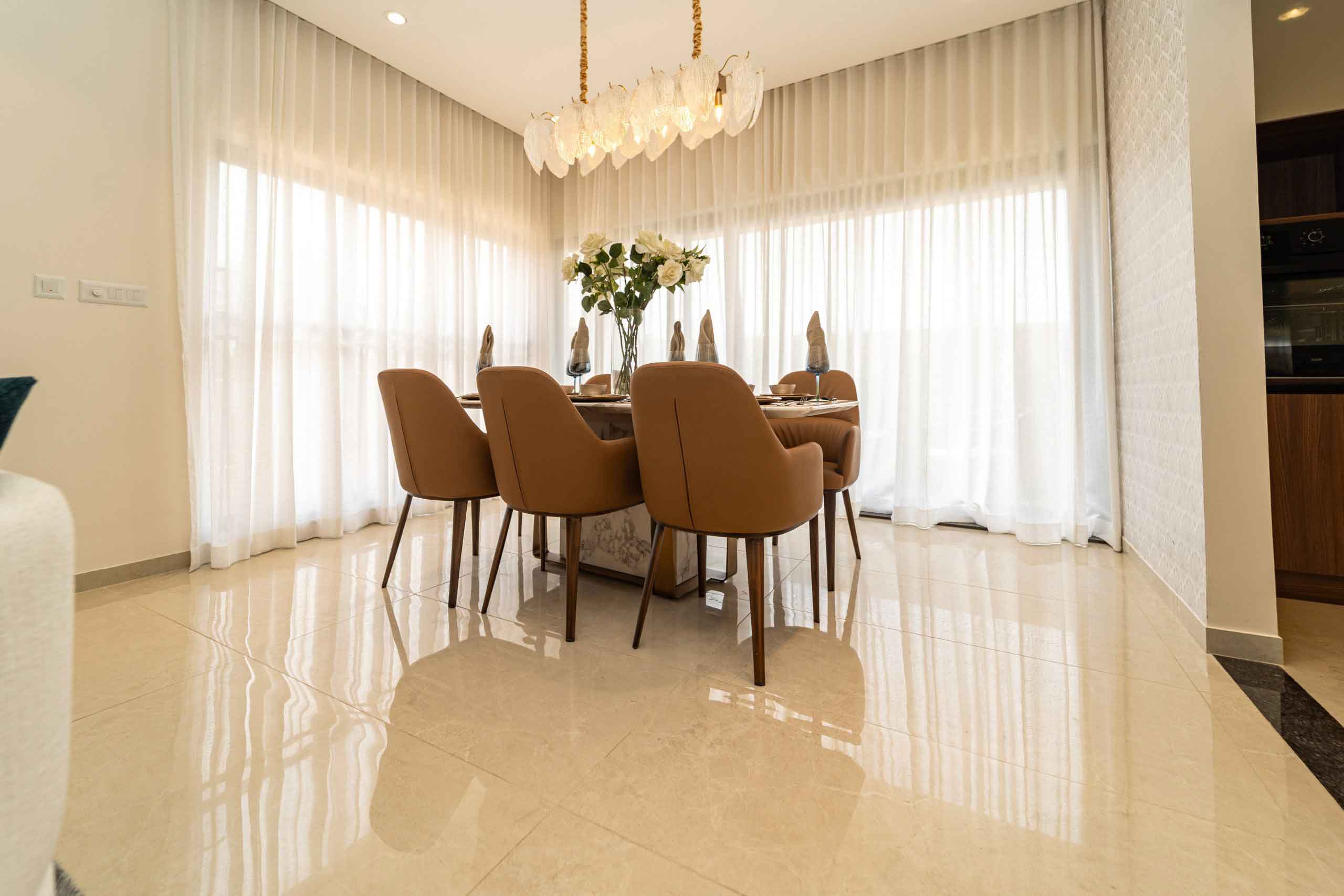

MAIN FLOORING, DINING, KITCHEN, BEDROOM,
INTERNAL PASSAGE Vitrified tiles of size 1200x600mm with granite threshold

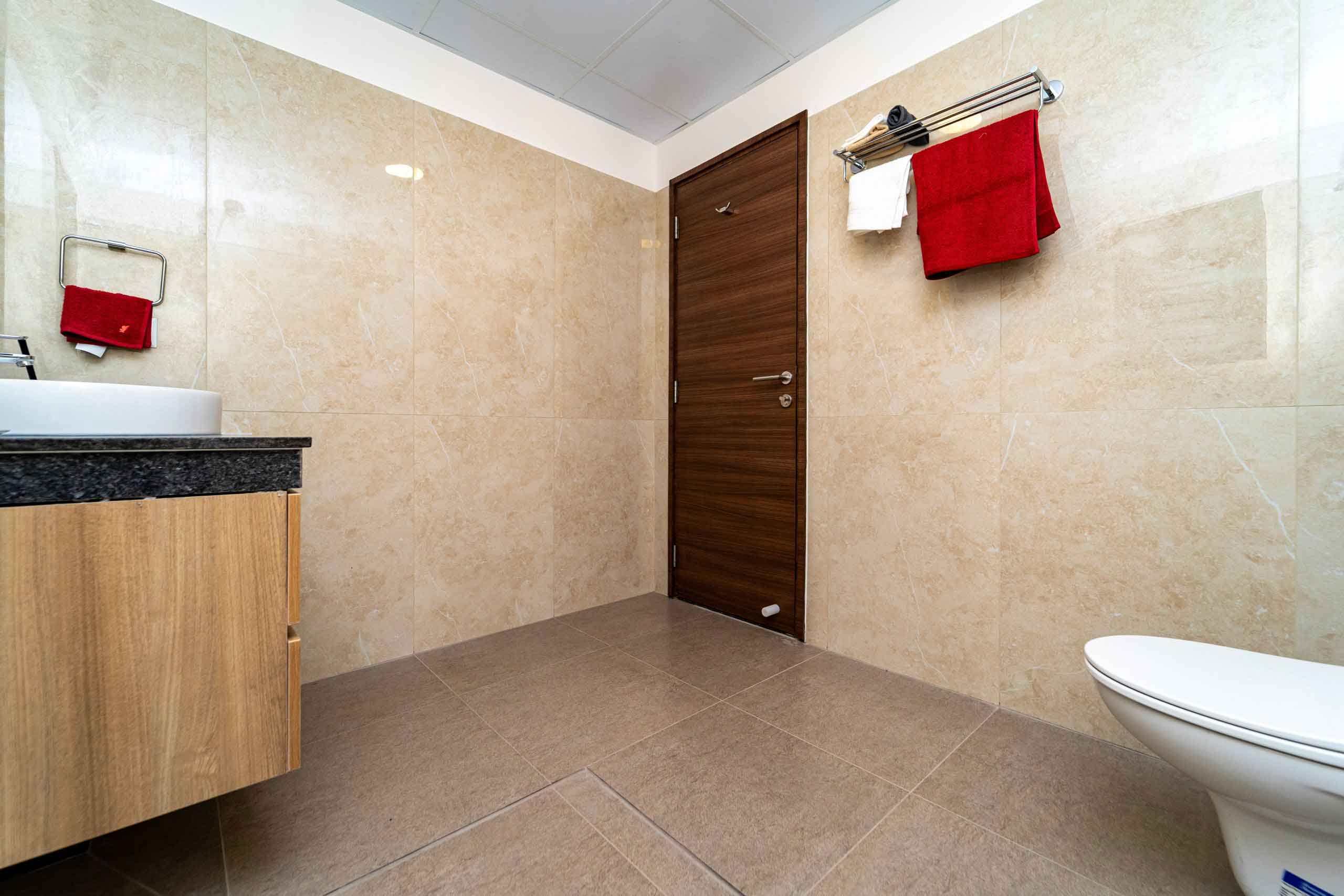

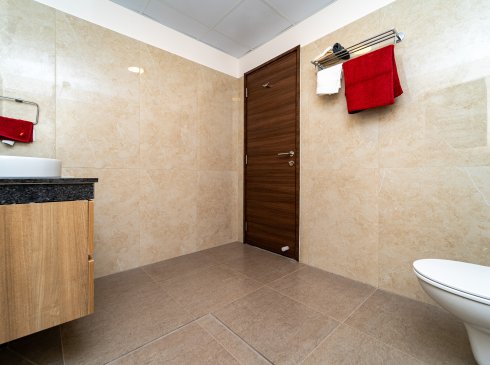

BATHROOM Anti-skid ceramic tiles of size
600x600mm with granite threshold

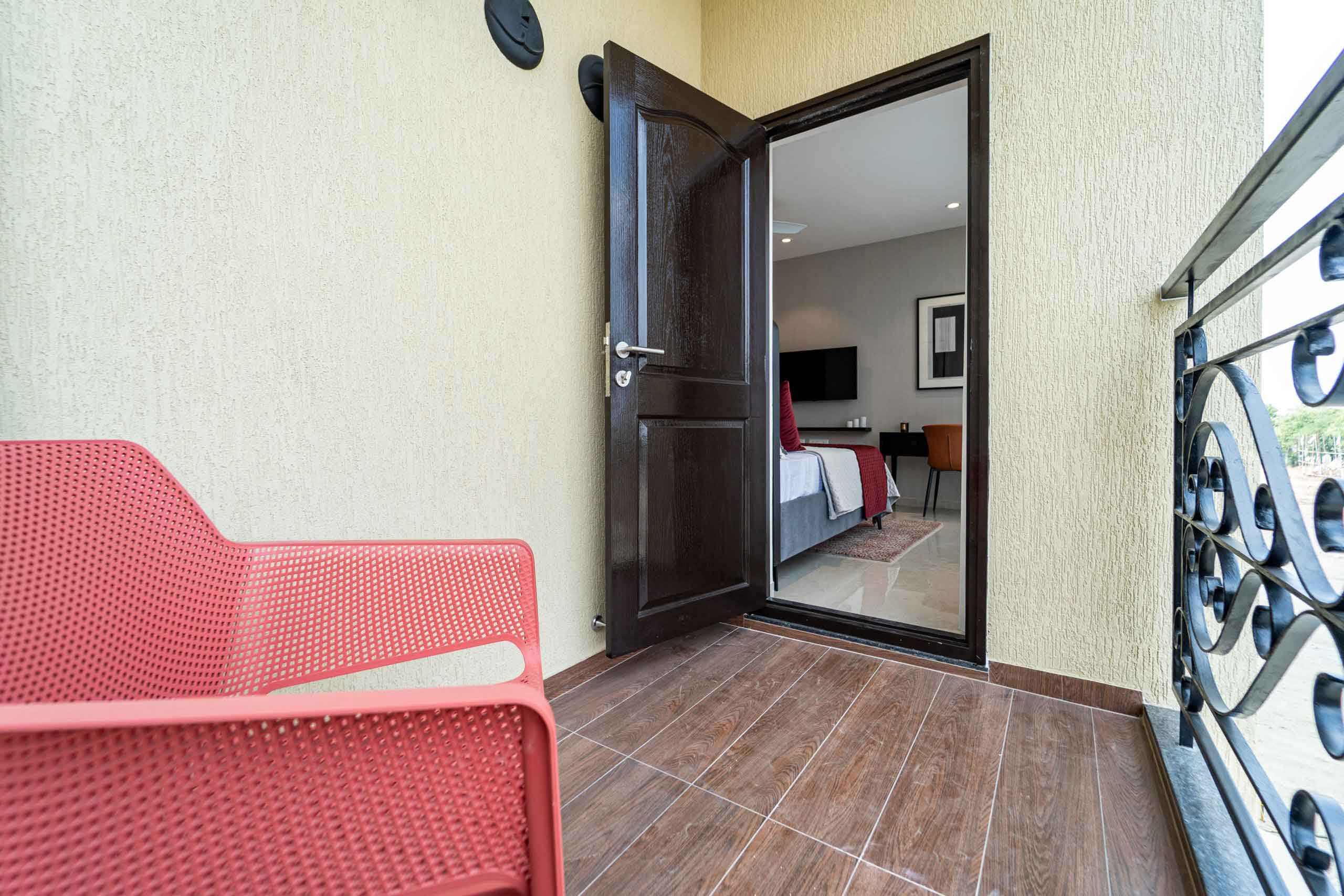

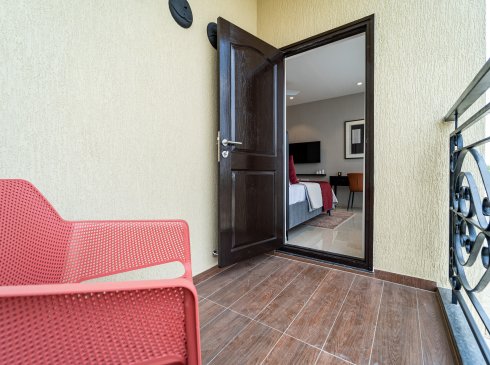

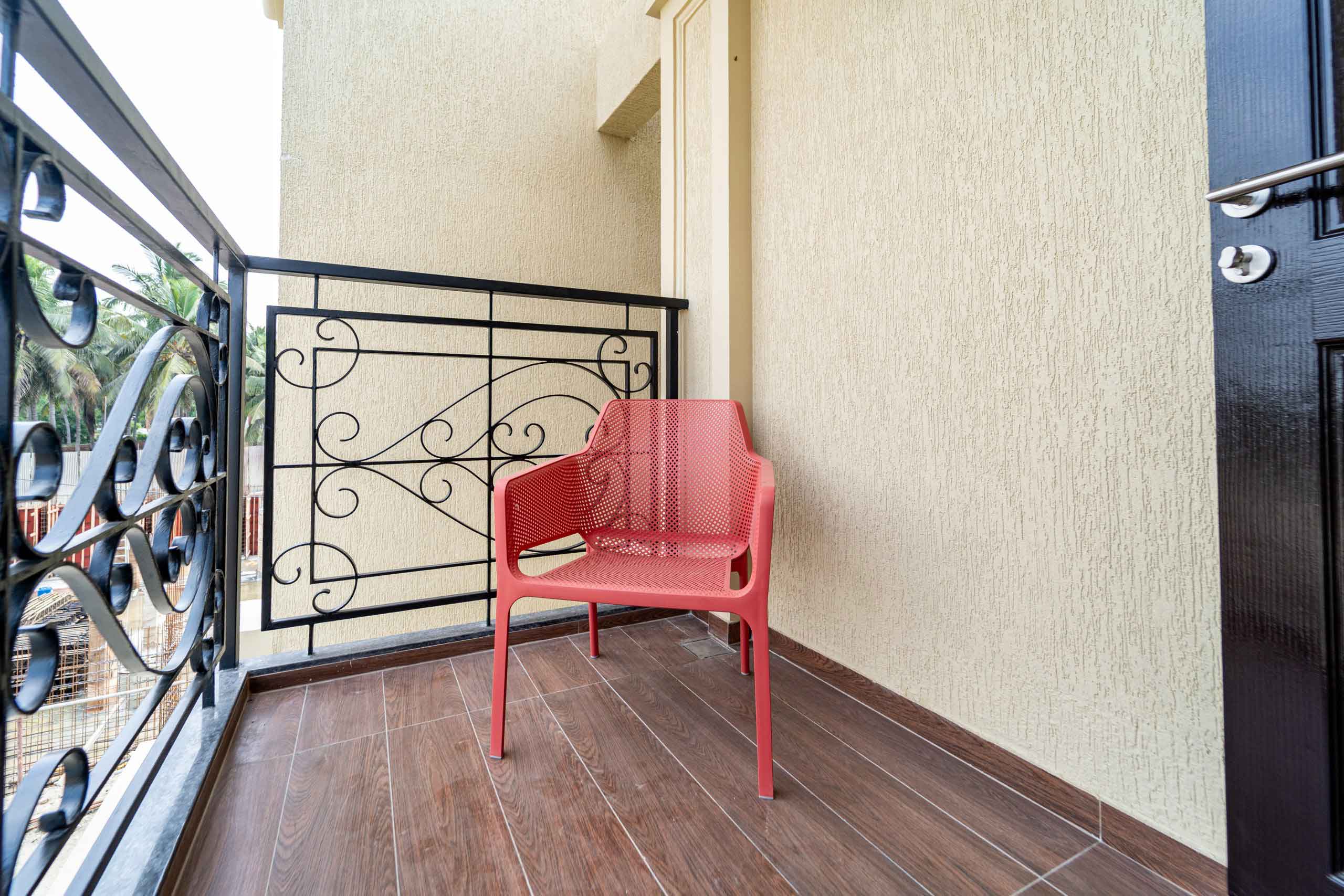

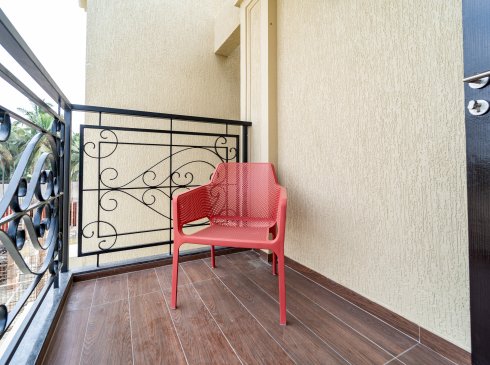

BALCONY / OPEN DECK Wooden finish tile flooring of size
200x1000mm
TERRACE Pressed tiles finish
CAR PARKING Kota / Shahabad / Outdoor tiles finish

ELECTRICAL POINT For Hob, Chimney, Water Purifier &
Washing Machine
PLUMBING POINT Inlet for Water Purifier, Inlet & Outlet
provision Washing Machine & Sink

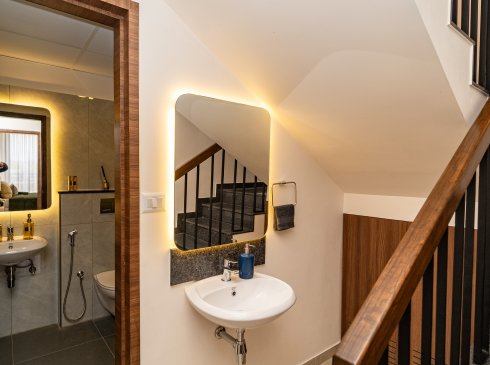

DINING Wall hung basin wherever applicable
with necessary CP fittings

HANDRAIL MS handrail finished with PU primer
with enamel paint as per architect’s design intent
CLOTH DRYING HANGER Cloth drying hanger provided in open terrace

CP & SANITARY FIXTURE American Standard or equivalent

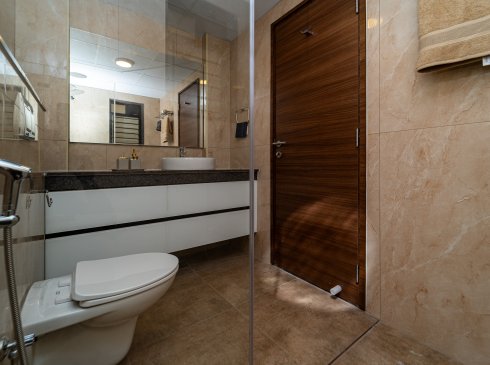

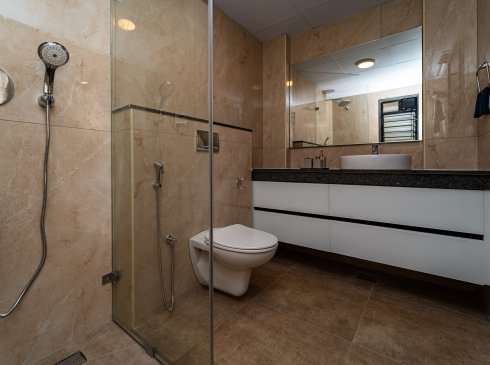

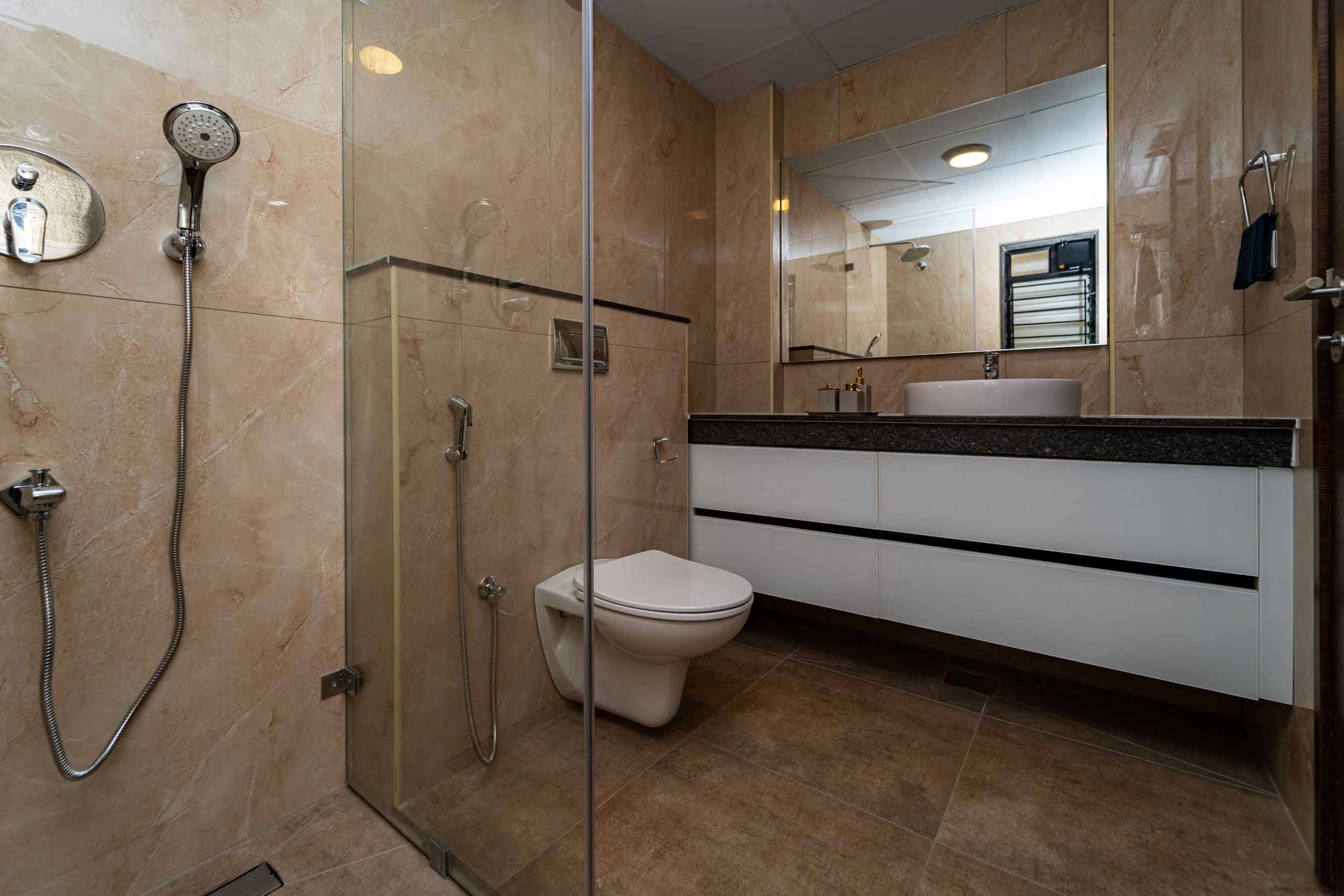

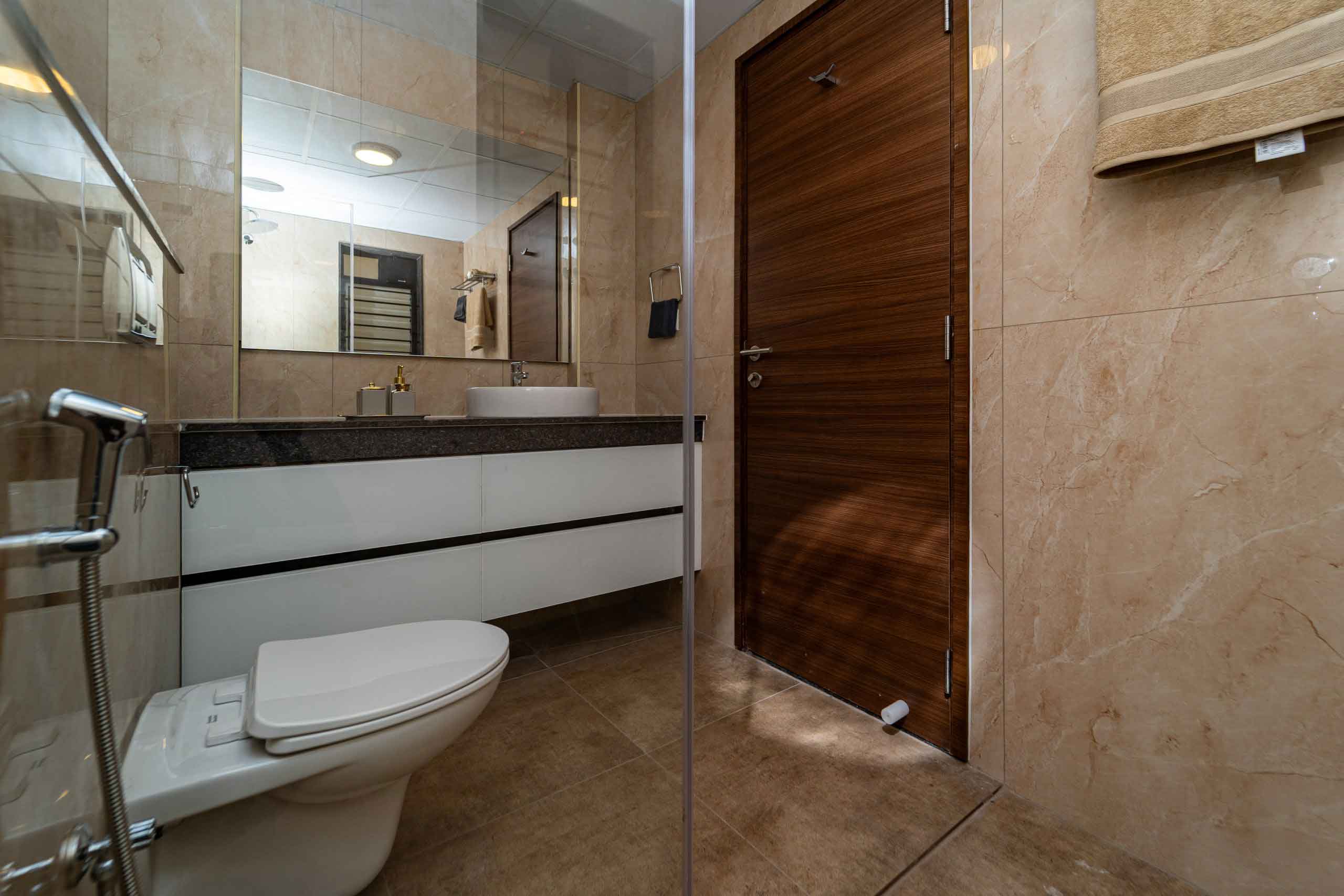

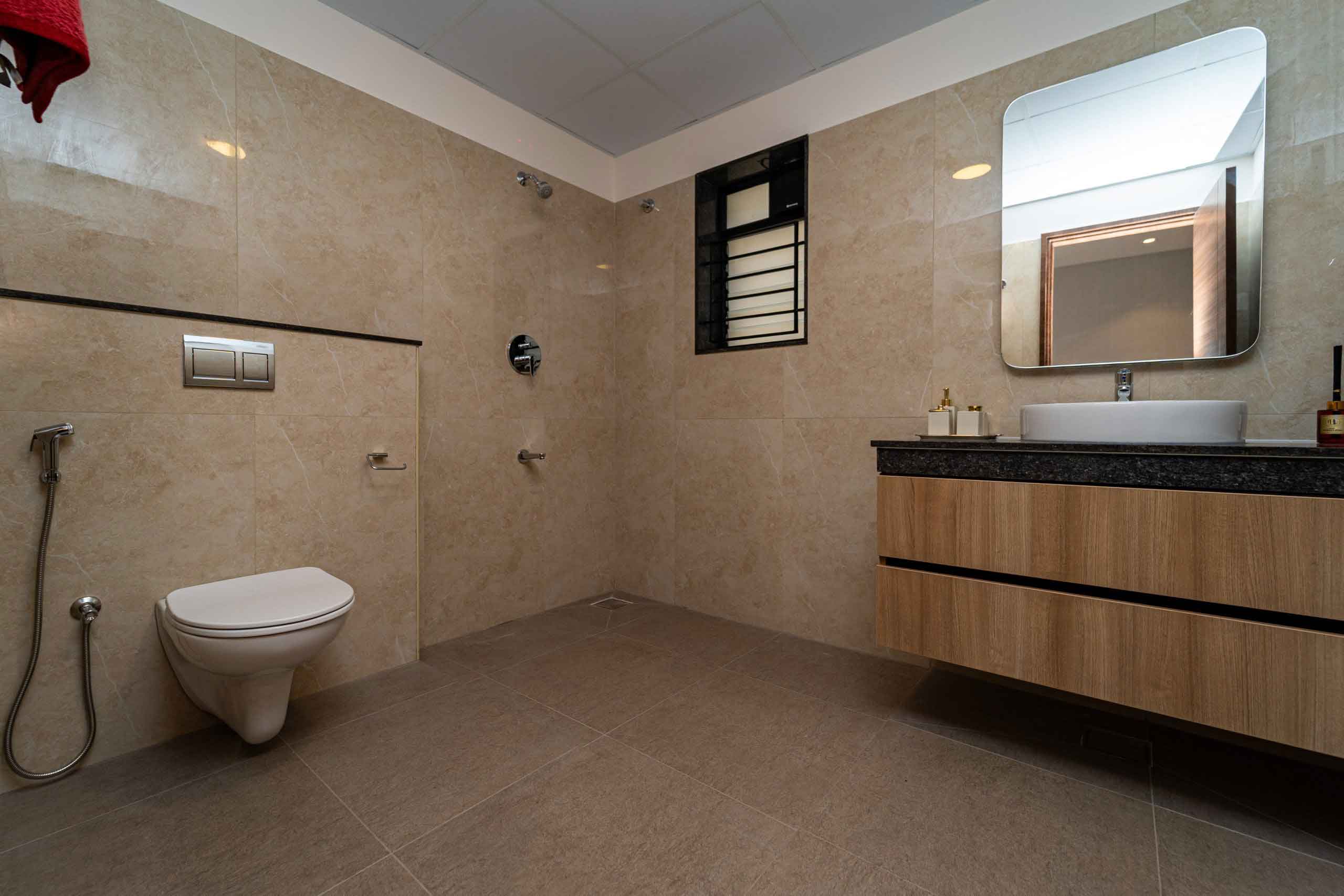

BATHROOM 1 & 4 Wall mounted WC with Concealed
cistern and flush plate, Health faucet, Single lever diverter, rain shower with hand shower, glass partition, & Granite
counter with single wash basin and 2 feet trench drain.  BATHROOM – 2 Wall mounted WC with Concealed cistern and flush plate, Health faucet, Single lever diverter with overhead shower, Granite counter with single wash basin
and square drain

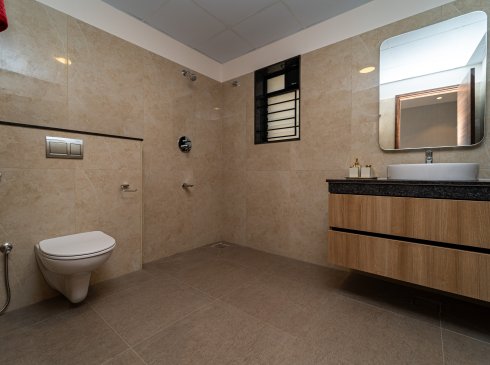

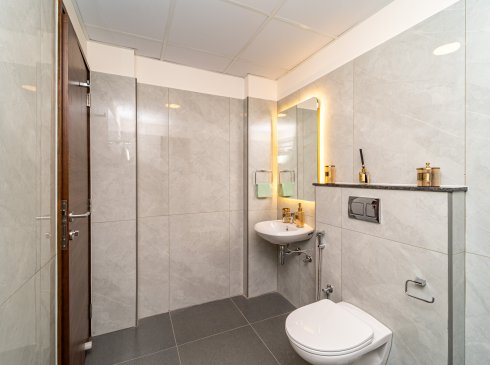

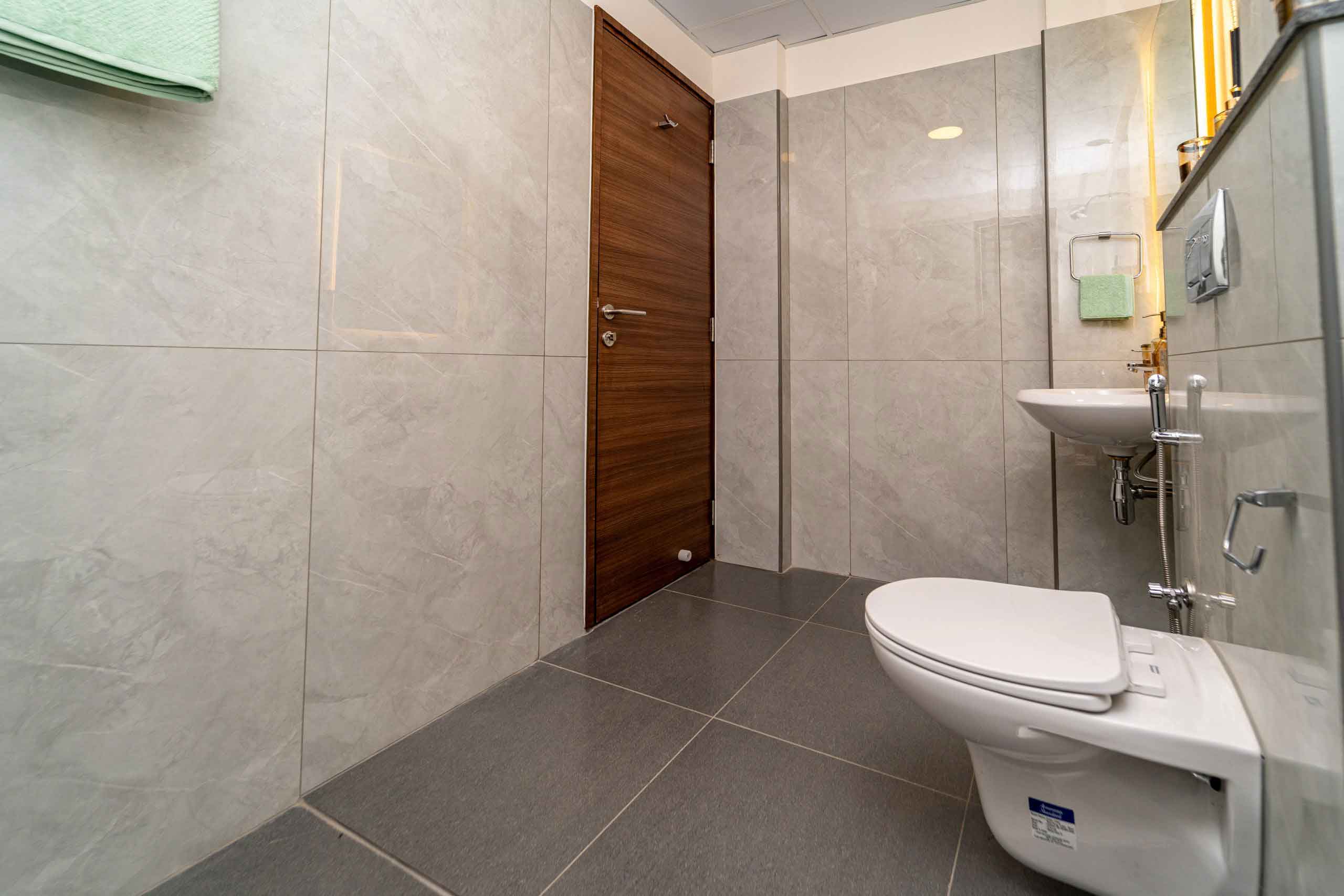

BATHROOM-3 Wall mounted WC with Concealed
cistern and flush plate, Health faucet, Single lever diverter with overhead shower & wall hung wash basin and
square drain
SOLAR WATER HEATER Solar Hot water line provided at shower area for all toilets with suitable capacity of water heater and no provision for Geyser inside the bathrooms

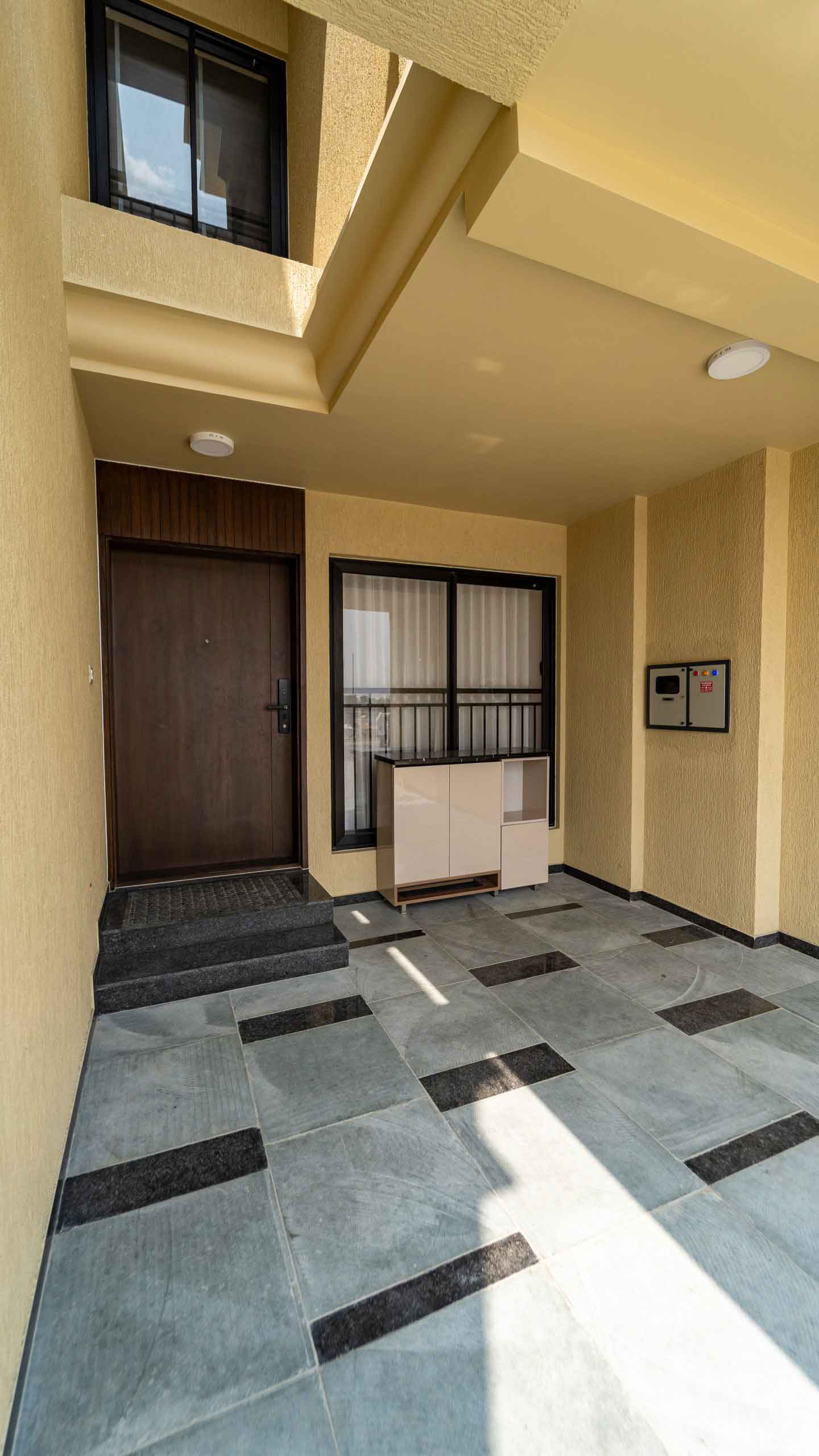

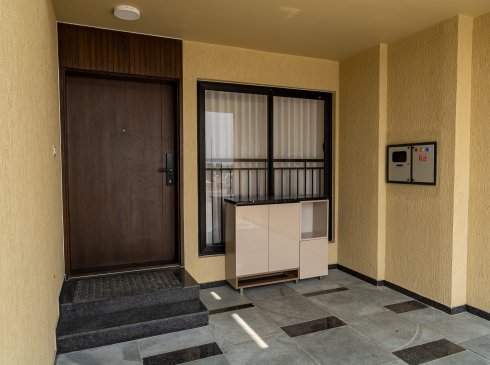

MAIN DOOR Good quality door frame with double
side veneer finish shutter and architrave of size 1200x2100mm with polish finish Ironmongeries like Digital Door lock, tower bolts, door viewer, safety latch, Magnetic door catcher of Yale / equivalent brand

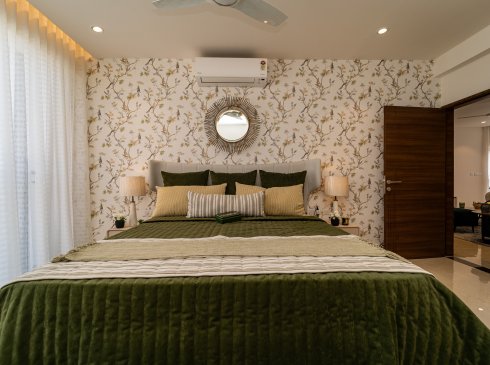

BEDROOM DOORS Good quality full jamb door frame with double sided-laminate finish shutters of size 1000x2100mm Ironmongeries like lock, door stopper,
door bush of Yale /equivalent brand
BATHROOM DOORS Good quality full jamb door frame with double-sided laminate finish shutters of
size 800x2100mm Ironmongeries like one side coin &
thumb turn lock without key, door bush of Yale / equivalent brand.
BALCONY DOORS Good quality door frame with
waterproof shutters of size 900x2100mm with paint finish
Ironmongeries like inside thumb turn lock without key, door catcher of Yale / equivalent brand

TERRACE DOORS Good quality FRP door frame & shutter
of size 900x2100mm Ironmongeries like inside thumb turn
lock without key, door catcher etc., of Yale / equivalent brand

WINDOWS Aluminum framed sliding shutter with
see-through plain glass & MS grill / railing (wherever applicable) finished with Zinc Chromite primer and enamel
paint
FRENCH DOORS Aluminum framed sliding shutters with
toughened glass
VENTILATORS Aluminum framed adjustable louver &
MS grill finished with Zinc Chromite primer and enamel paint

LIFT PROVISION 5 passenger lift capacity well will be
provided
LIFT FACIA Granite cladding as per architect’s
intent

POWER SUPPLY 3 PHASE power supply connection
SAFETY DEVICE MCB & RCCB (Residual current circuit
breaker)
SWITCHES & SOCKETS Modular box & modular switches & sockets of good quality IS brand
WIRES Fire Retardant Low Smoke (FRLS)
copper wire of good quality IS brand
5 AMP SOCKET (OUTDOOR)
Point provided in balcony & outdoor
landscape deck

FOOT LAMP Provided in all bedrooms

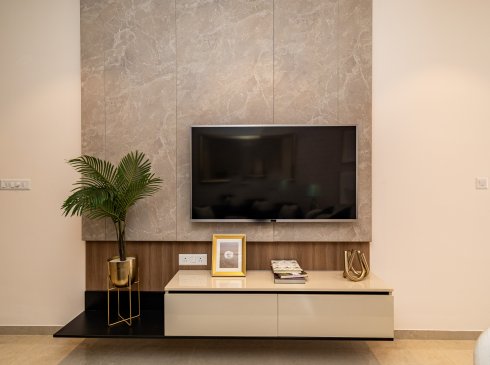

TV Point in Living & Master Bedroom,
Provision in other bedrooms and lounge
DATA Point in Living and provision in Master Bedroom
SPLIT- AIR CONDITIONER Points in living / dining, & all bedrooms
EXHAUST FAN Point in all bathrooms
POWER BACK-UP Inverter provision for fan and light
points (Wiring & Conduit provision only)

WATER STORAGE Centralized UG sump with WTP (Min.
requirement as per water test report)
RAIN WATER HARVESTING Rain water harvesting system (as per site requirement)
STP Centralized Sewage Treatment plant (as per site requirement)
COMMON BACK-UP 100% Power backup for common
amenities such as clubhouse, WTP, STP & common area lightings
SAFETY CCTV surveillance cameras will be provided all-round the building at pivotal locations in ground level
SECURITY Security booth will be provided at the
entry / exit facilitated with MY GATE app

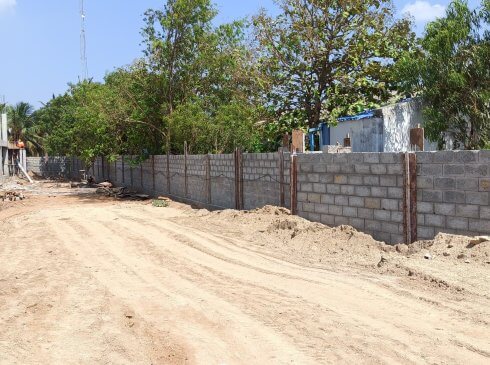

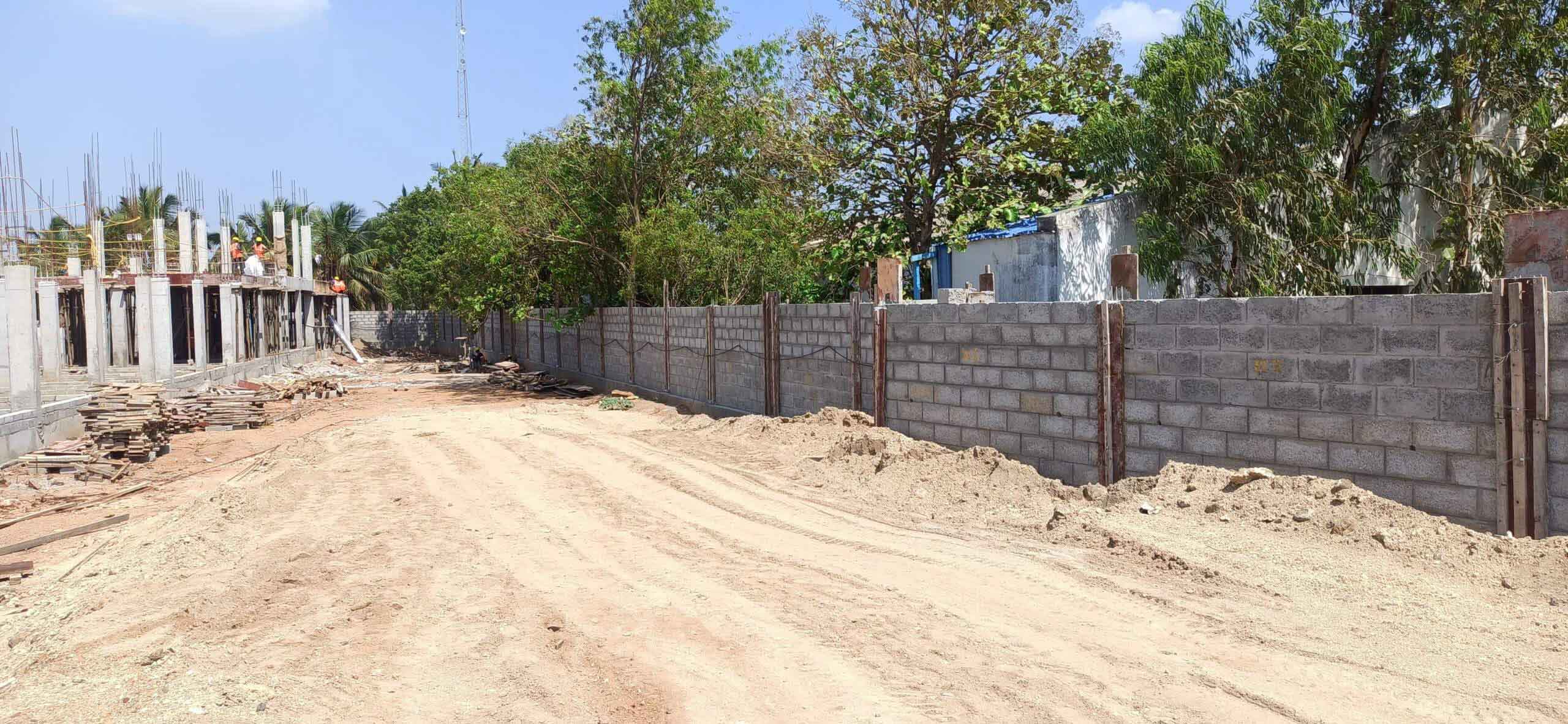

COMPOUND WALL Site perimeter fenced by compound wall with entry gates for height of 2100mm as per design intent and over that barbed fence wherever applicable

WATER STORAGE Centralized UG sump with WTP (Min.
requirement as per water test report)
RAIN WATER HARVESTING Rain water harvesting system (as per site requirement)
STP Centralized Sewage Treatment plant (as
per site requirement)
COMMON BACK-UP 100% Power backup for common
amenities such as clubhouse, WTP, STP & common area lightings
SAFETY CCTV surveillance cameras will be provided all-round the building at pivotal locations in ground level
SECURITY Security booth will be provided at the
entry / exit facilitated with MY GATE app
COMPOUND WALL Site perimeter fenced by compound wall with entry gates for height of 2100mm as per design intent and over that barbed fence wherever applicable

LANDSCAPE Suitable landscape at appropriate places
in the project as per design intent
INTERNAL DRIVEWAYS Interlocking paver block / equivalent flooring with demarcated driveway with elegant lighting as per landscape design intent
EXTERNAL DRIVEWAY Convex mirror for safe turning in
driveway in / out
