Casagrand Ventra

Structural System : RCC Framed Structure designed for seismic compliance (Zone III)

MASONRY
MIVAN : RCC walls as per structural design for Block-1
CONVENTIONAL : 200mm for external walls & 100mm for internal walls for Block-2 Floor
Floor height (incl. slab) : Will be maintained at 3000mm for Block-1 and 3300 for Block 2

Internal walls : Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion
Ceiling : Finished with 2 coats of putty, 1 coat of primer & 2 coats of tractor emulsion
Exterior walls : Finished with 1 coat of primer & 2 coats of exterior emulsion paint & color as per architect design
Bathroom : Vitrified tiles of size 600x1200mm till 2550mm height & above will be finished with a coat of primer
Toilet ceiling : Grid / Panel type false ceiling

Main flooring (Foyer, Living, Dining, Passage Bedroom & kitchen) : Vitrified tiles of size 600x1200mm
Bathroom : Anti-skid ceramic tiles of size 600x1200mm
Balcony : Wooden finish tiles of size 600x1200mm
Door threshold : Granite threshold will be provided for all doors

Kitchen : Will be left open for modular kitchen
CP fitting : Brand based on standardized budget
Dining : Granite countertop wash basin with 300mm height Granite backsplash (wherever applicable)

Handrail : MS handrail as per architect’s design intent
Cloth drying hanger : Ceiling cloth drying hanger in living balcony
Swing hook : Swing hook provided in the balcony

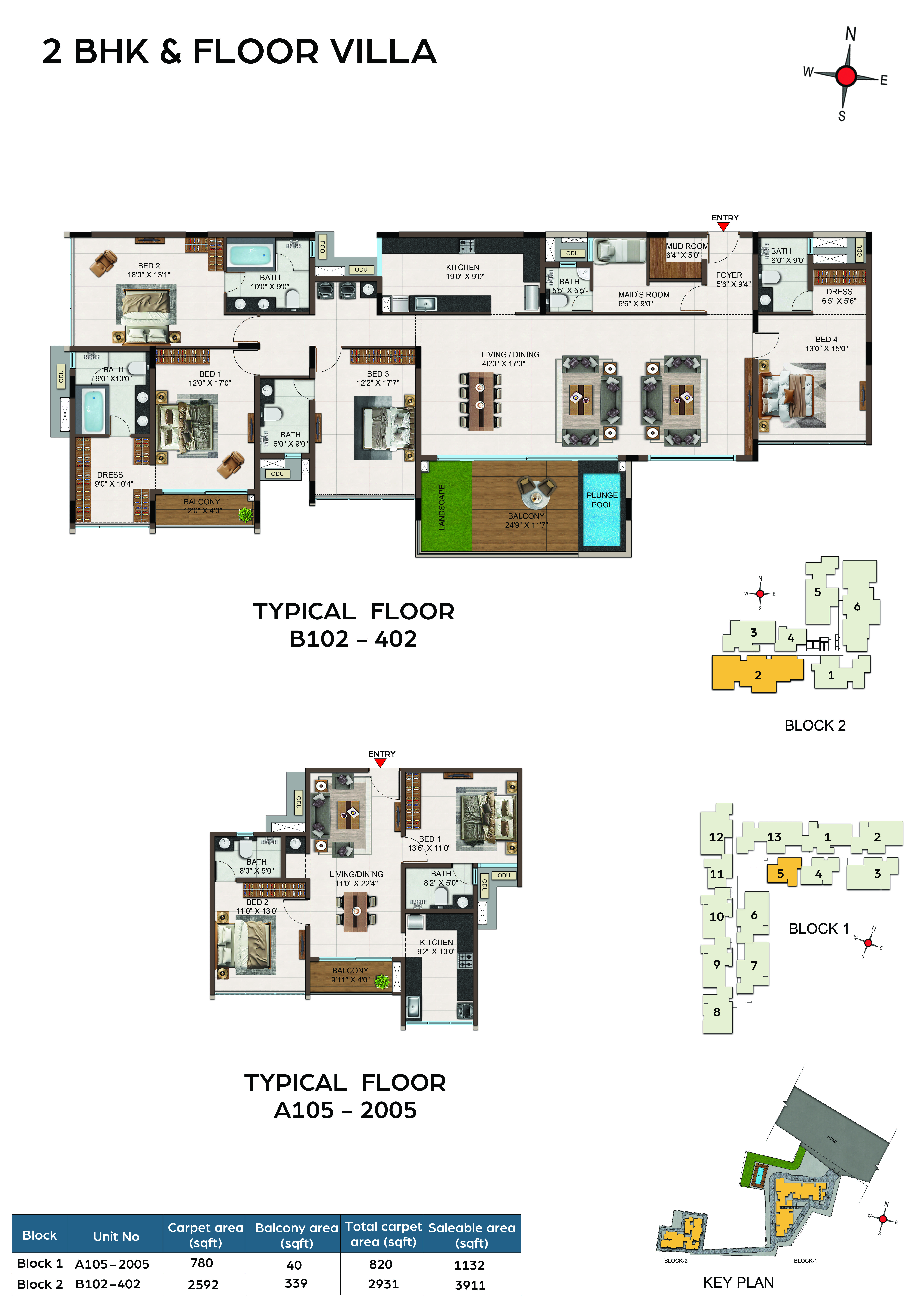

Plunge pool (Floor villa) : Plunge pool with water cascade as per design intent
Dining : Granite countertop wash basin with 300mm height Granite backsplash

CP & Sanitary fixture : Jaquar or equivalent

Master Bathroom :
Wall mounted WC with cistern, Health faucet, Single lever diverter with Rain shower, spout & granite counter with counter top wash basin and 2 long trench drain & hand shower

Floor Villa Master Bathroom :
Wall mounted WC with cistern, Health faucet, Single lever diverter with Rain shower, spout & granite counter top wash basin and 2 long trench drain & hand shower

Other Bathrooms :
Wall mounted WC with cistern, Health faucet, Single lever diverter with overhead shower, spout & granite countertop wash basin and 2 long trench drain

Floor Villa :
Provided with fixed glass partition with glass door in Bathroom 1 & 2
Bathtub with single lever diverter, spout & hand shower

A. DOORS

Main door :
Good quality frame with double side veneer finish shutter of size 1200 x 2400mm
Ironmongeries like Digital door lock of Yale or equivalent, 18″ tower bolts, door viewer, door closure, magnetic door catcher, etc., of Yale / equivalent brand

Bedroom doors :
Good quality frame with double-sided laminated designer door of size 1000 x 2400mm
Ironmongeries like lock, door stopper, magnetic catcher, 8″ tower bolt, etc., of Yale / equivalent brand

Bathroom doors :
Double-sided laminated designer door with polished frame of size 800 x 2400mm
Ironmongeries like one side coin thumb turn lock without key, 6″ tower bolt, door bush, etc., of Yale / equivalent brand

A. WINDOWS

Windows :
Aluminum windows with sliding shutter with see-through tinted glass & MS grill / railing (wherever applicable)
Sill level finished with Granite

French doors :
Aluminum sliding shutters with toughened glass

Ventilators :
Aluminum fixed louver / openable shutter for ODU access (wherever applicable)
Soffit finished with Granite

Power Supply : 3 Phase power supply connection
Safety devices : MCB & RCCB (Residual current circuit breaker)
Switches & sockets : Modular box & modular switches & sockets of Schneider / equivalent
Wires : Fire Retardant Low Smoke (FRLS) copper wire of a quality IS brand
Master control switch : Point in living / foyer
Foot lamp : Point in all bedrooms
USB Socket : Point in living and master bedroom
TV : Point in living, master bedroom & other bedrooms
Data : Point in living & one of the bedrooms
Split – air conditioner : Points in living / dining and in all bedrooms
Exhaust fan : Point in all bathrooms
Geyser : Point in all bathrooms
Back-up : 350W for 1BHK, 400W for 2BHK, 500W for 3BHK, 650W for 4BHK
Washing machine : Point in utility
Wi-Fi router : Provision in living, master and other bedrooms
Additional ceiling light points : In living, dining and passage
2-way fan point : Provision in all bedrooms
Kitchen electrical point : For chimney, water purifier, hob, dishwasher (wherever applicable), fan and additional light point
Dining wash basin : Mirror lights point provided
Weather proof socket (5 amp) : Point provided in living/dining balcony
5 Amp socket : Point provided in master bathroom and other bathrooms

Lift : Automatic lift will be provided with MS finish
Back-up : 100% power backup for common amenities such as clubhouse, lifts, WTP, STP & selective common area lighting
Name board : Apartment owner name will be provided in ground floor
Lift fascia : Designer vitrified tile finish with granite jambs
Lift lobby : Designer vitrified tile finish with pattern
Corridor : Vitrified tile finish of size 600x600mm
Staircase floor : Granite flooring at 4 floors & tile flooring at other floors
Staircase handrail : MS handrail with enamel paint finish in all floors
Terrace floor : Pressed tile flooring
Terrace doors : Good quality door frame with FRP shutters 800 x 2100 mm
Ironmongeries : Thumb turn lock, door closure, tower bolt, etc., of Godrej / equivalent brand

Water storage
: Centralized UG sump with WTP (Min. requirement as per water test report)

Rain water harvest
: Rain water harvesting system (as per site requirement)

STP
: Centralized Sewage Treatment plant

Safety
: CCTV surveillance cameras will be provided all round the building at pivotal locations in ground level

Well defined walkway
: Walkway spaces well defined as per landscape design intent

Security
: Security booth will be provided at the entry / exit facilitated with My Gate app

Compound wall
: Site perimeter fenced by compound wall with entry gates for a height of 1500mm as per design intent and over that 300mm with barbed fence.

Landscape
: Suitable landscape at appropriate places in the project as per design intent

Driveway
: Convex mirror for safe turning in driveway in / out

External Driveway
: Interlocking paver block / equivalent flooring with demarcated driveway as per landscape design intent Granite / Cobble stone flooring in entrance driveway and block lobby entrances.
